EVIL ENERGY 6AN 8AN 10AN PTFE Fuel Line Kit, AN6 AN8 AN10 Nylon Braided Fuel Line Hose Fitting Kit PTFE 20FT(2 Kits)
---!@!start!@!---Specifications---!@!end!@!---
| Brand | EVIL ENERGY |
| Size | 6/8/10AN |
| Length | 20FT |

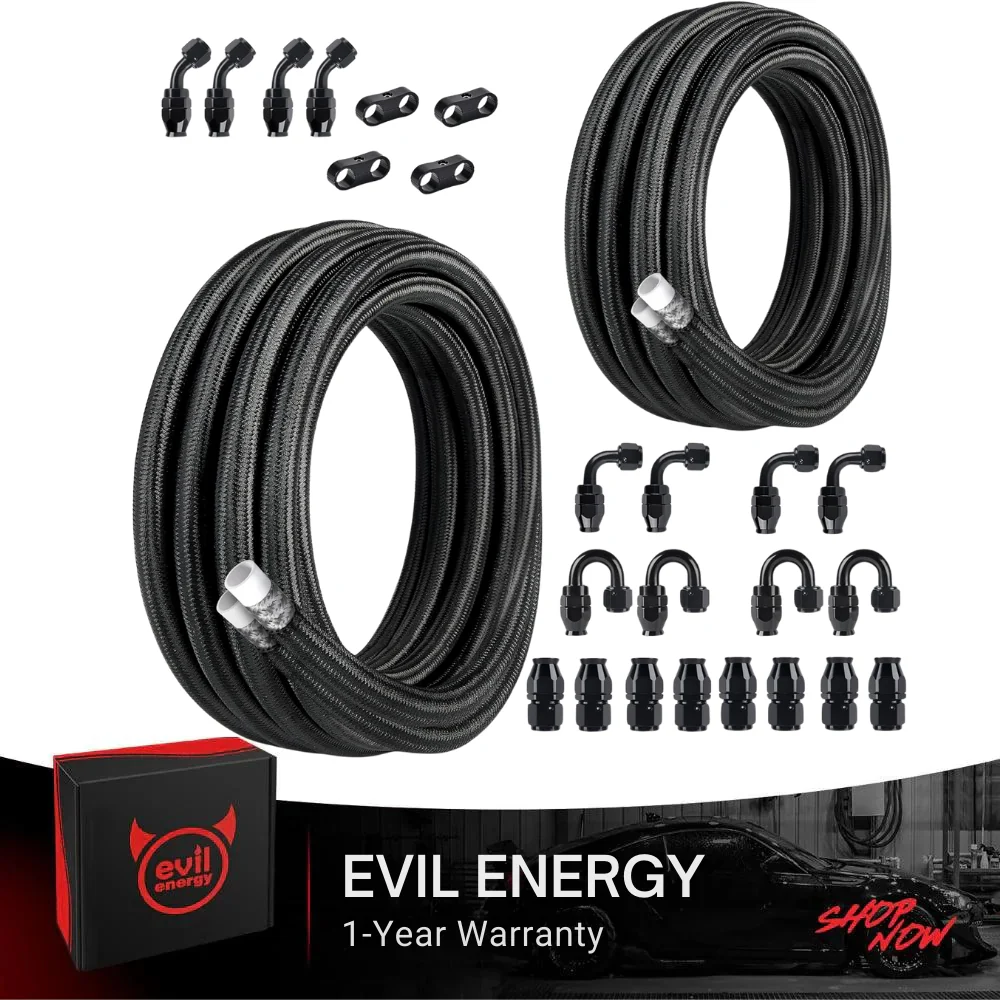

| Kit Includes |
20FT 8AN PTFE Fuel Line*1 20FT 6/10AN PTFE Fuel Line*1 |
Product Compare
 |
 |
 |
 |
|
SIZE |
4AN |
6AN |
8AN |
10AN |
|

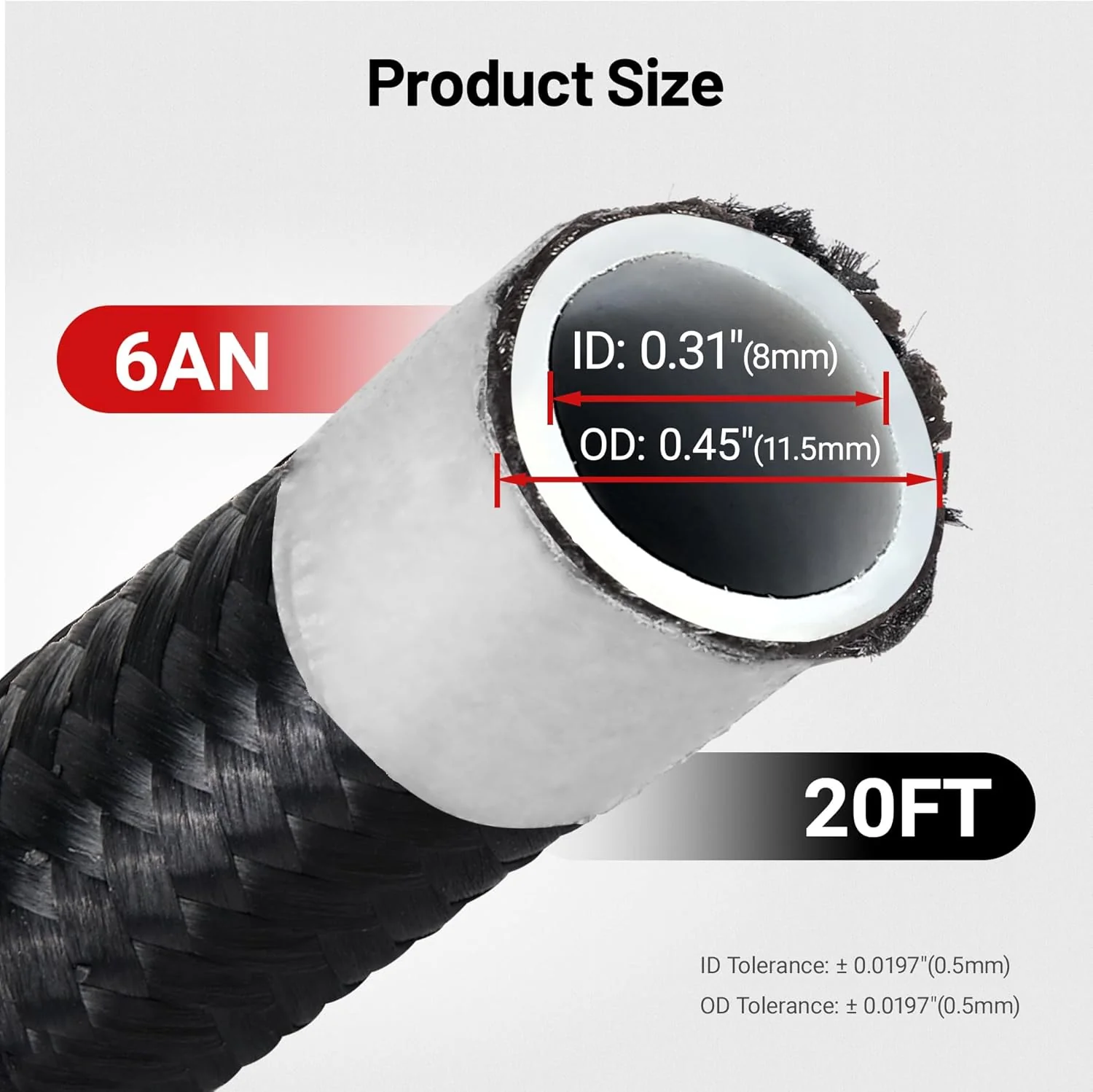

Hose ID |
0.197"(5mm) |
0.315"(8mm) |
0.394"(10mm) |
0.511"(12.97mm) |
| Hose OD-Black |
0.346"(8.78mm) |
0.465"(11.81mm) |
0.543"(13.79mm) |
0.681"(17.29mm) |
|
Hose OD-Silver |
0.315"(8mm) |
0.433"(10.99mm) |
0.512"(13mm) |
0.641"(16.28mm) |
|
Min Bending Radius |
2.5"(63.5mm) |
3.5"(88.9mm) |
4.0"(101.6mm) |
4.5"(114.3mm) |
|
Max Working Pressure |
1500PSI |
1500PSI |
1500PSI |
1250PSI |
|
Bursting Pressure |
4500PSI |
4500PSI |
4500PSI |
3750PSI |
---!@!start!@!---Description---!@!end!@!---
Key Features:
- [Applicable Medium] Our PTFE fuel hose kits is suit for all automotive fuels, lubricants, and coolants.

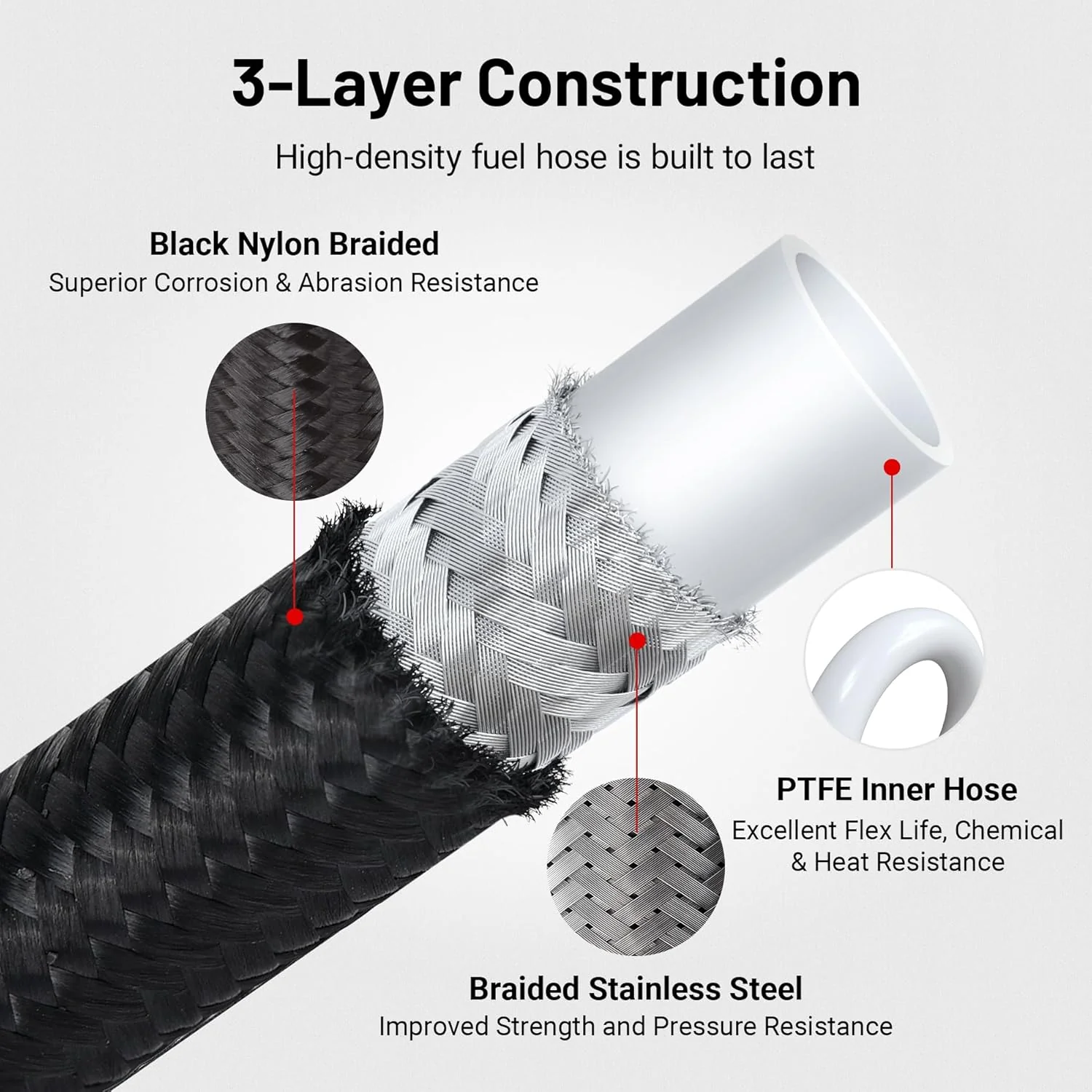

- [Suitable for Widely Usage] PTFE nylon braided fuel lines are ideal for high temperature and high pressure applications.
- [Notice] PTFE hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.
---!@!start!@!---Specifications---!@!end!@!---
| Brand | EVIL ENERGY |
| Size | 6/8/10AN |
| Length | 20FT |
| Kit Includes |
20FT 8AN PTFE Fuel Line*1 20FT 6/10AN PTFE Fuel Line*1 |
Product Compare
|
|
|
|
|
SIZE |
4AN |
6AN |
8AN |
10AN |
|
Hose ID |
0.197"(5mm) |
0.315"(8mm) |
0.394"(10mm) |
0.511"(12.97mm) |
| Hose OD-Black |
0.346"(8.78mm) |
0.465"(11.81mm) |
0.543"(13.79mm) |
0.681"(17.29mm) |
|
Hose OD-Silver |
0.315"(8mm) |
0.433"(10.99mm) |
0.512"(13mm) |
0.641"(16.28mm) |
|
Min Bending Radius |
2.5"(63.5mm) |
3.5"(88.9mm) |
4.0"(101.6mm) |
4.5"(114.3mm) |
|
Max Working Pressure |
1500PSI |
1500PSI |
1500PSI |
1250PSI |
|
Bursting Pressure |
4500PSI |
4500PSI |
4500PSI |
3750PSI |
---!@!start!@!---Description---!@!end!@!---
Key Features:
- [Applicable Medium] Our PTFE fuel hose kits is suit for all automotive fuels, lubricants, and coolants.
- [Suitable for Widely Usage] PTFE nylon braided fuel lines are ideal for high temperature and high pressure applications.
- [Notice] PTFE hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.
Original: $180.00
-65%$180.00
$63.00Description
