EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting
---!@!start!@!---Specifications---!@!end!@!---
| Product Type | AN Flare to AN ORB Male Adapter Fitting |
| Available Sizes | 4AN / 6AN / 8AN / 10AN / 12AN / 16AN / 20AN |
| AN Thread Sizes | 4AN 7/16-20 UNF 6AN 9/16-18 UNF 8AN 3/4-16 UNF 10AN 7/8-14 UNF 12AN 1-1/16-12 UNF |
| Material | 6061-T6 Aluminum with NBR Rubber O-ring |
| Surface Finish | Black Anodized |
| Working Pressure | Up to 1500 PSI |
| Operating Temperature | -65°F to 252°F |
| O-ring Temperature Range | -4°F to 392°F |
| Package Options | 1 Piece / 2 Pieces / 4 Pieces |
---!@!start!@!---Description---!@!end!@!---

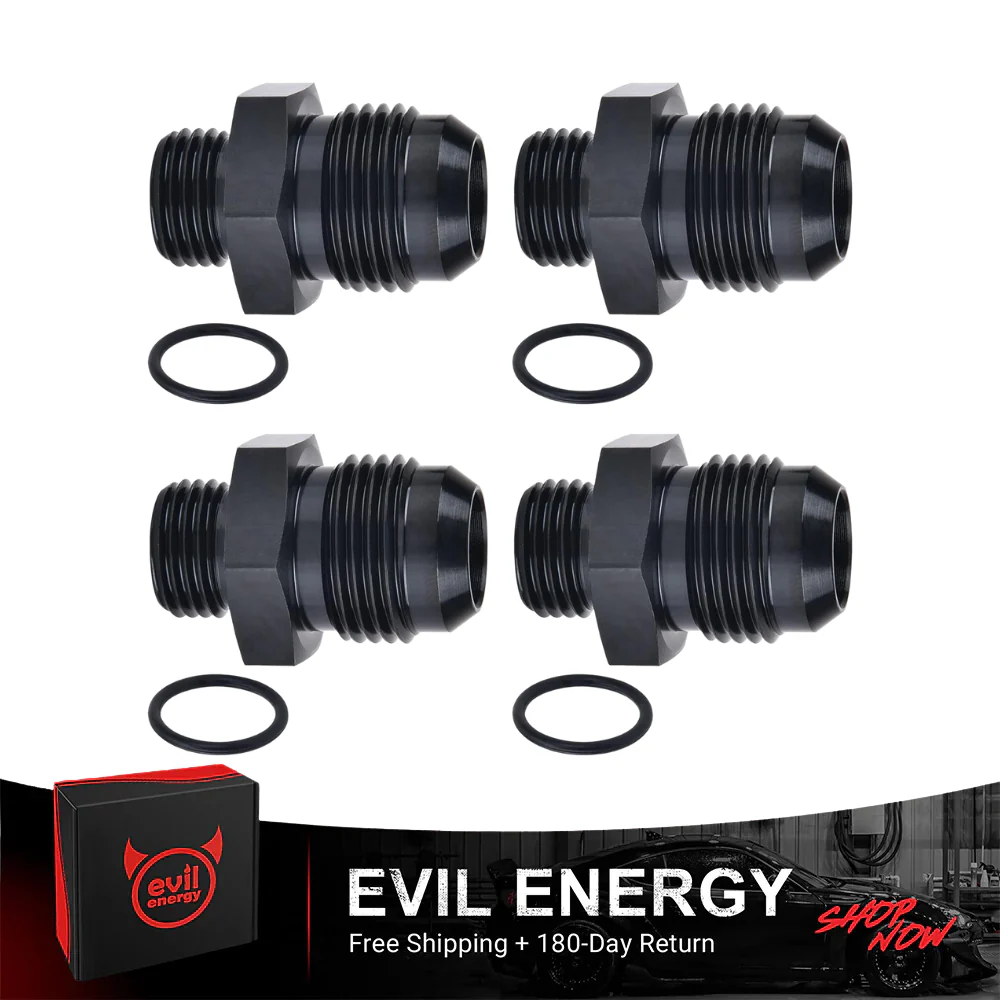

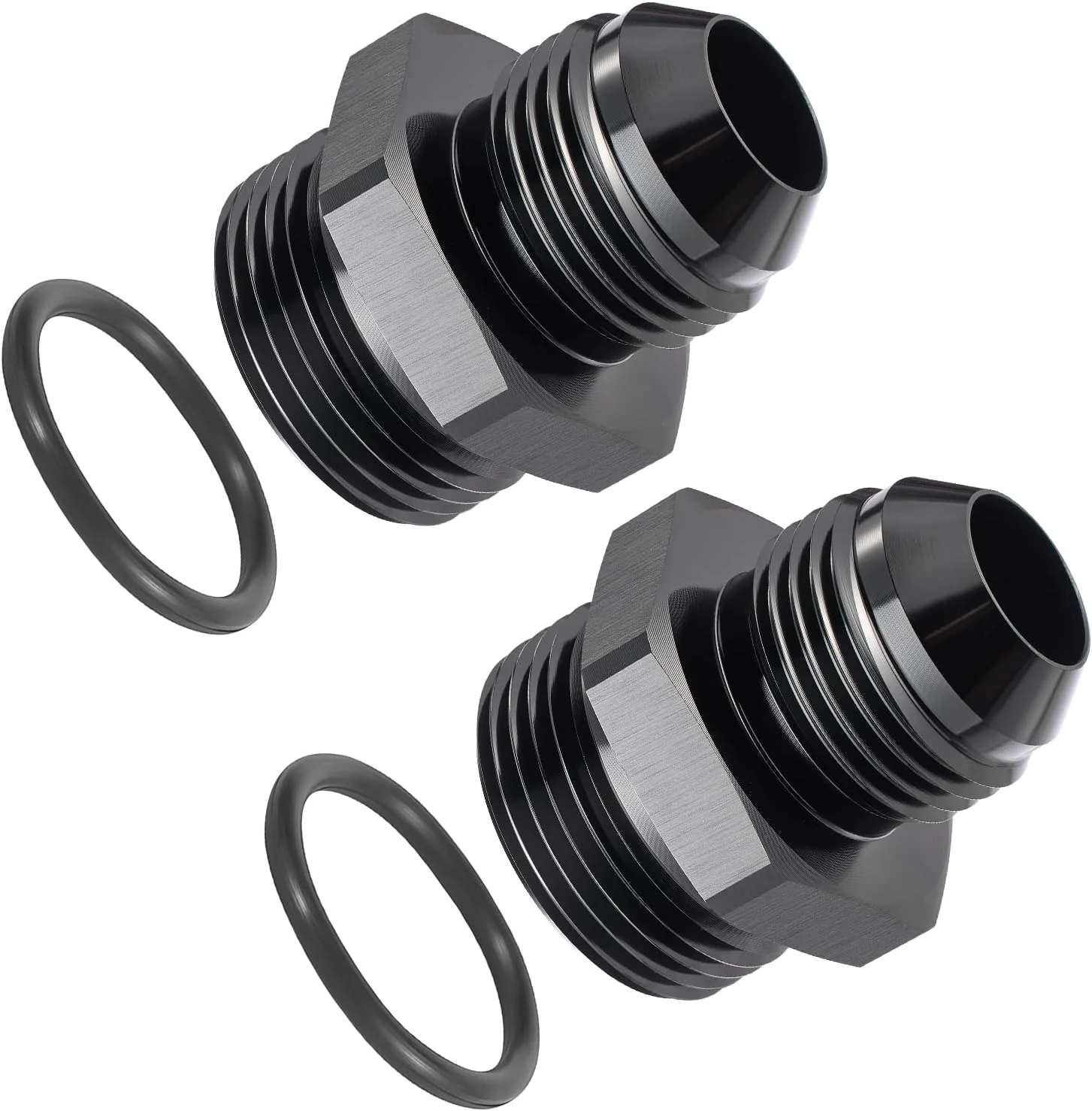

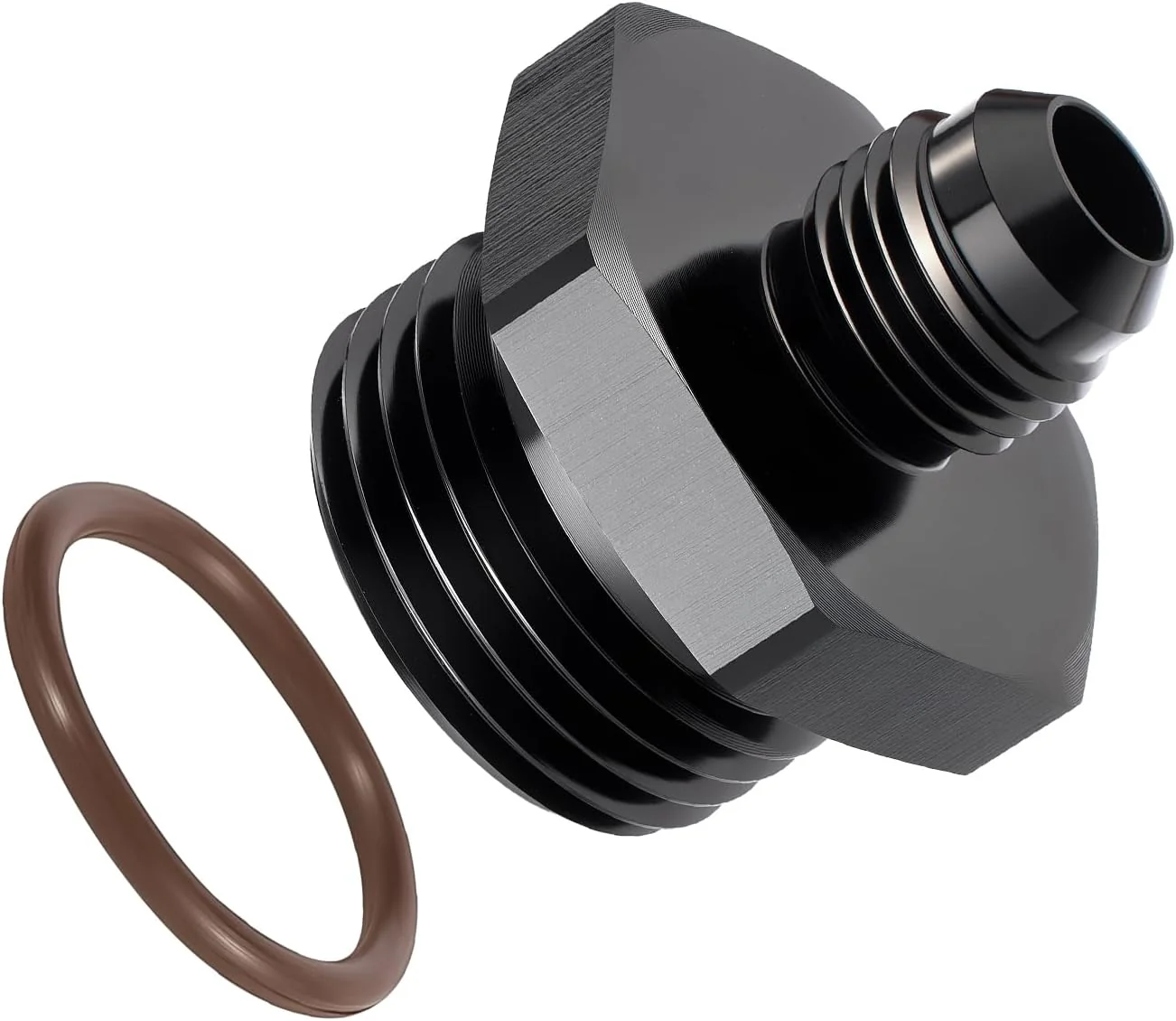

The EVIL ENERGY AN Flare to AN ORB Male Adapter Fitting is designed for clean and secure connections in performance fuel and oil systems. Featuring a precision machined 37 degree AN flare on one side and an ORB O ring seal on the other, it provides reliable leak resistance even under high pressure.
Constructed from lightweight 6061 T6 aluminum with a corrosion resistant black anodized finish, this adapter is ideal for fuel rails, fuel pumps, regulators, filters, and oil coolers in street, performance, and racing applications.
---!@!start!@!---Specifications---!@!end!@!---
| Product Type | AN Flare to AN ORB Male Adapter Fitting |
| Available Sizes | 4AN / 6AN / 8AN / 10AN / 12AN / 16AN / 20AN |
| AN Thread Sizes | 4AN 7/16-20 UNF 6AN 9/16-18 UNF 8AN 3/4-16 UNF 10AN 7/8-14 UNF 12AN 1-1/16-12 UNF |
| Material | 6061-T6 Aluminum with NBR Rubber O-ring |
| Surface Finish | Black Anodized |
| Working Pressure | Up to 1500 PSI |
| Operating Temperature | -65°F to 252°F |
| O-ring Temperature Range | -4°F to 392°F |
| Package Options | 1 Piece / 2 Pieces / 4 Pieces |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY AN Flare to AN ORB Male Adapter Fitting is designed for clean and secure connections in performance fuel and oil systems. Featuring a precision machined 37 degree AN flare on one side and an ORB O ring seal on the other, it provides reliable leak resistance even under high pressure.
Constructed from lightweight 6061 T6 aluminum with a corrosion resistant black anodized finish, this adapter is ideal for fuel rails, fuel pumps, regulators, filters, and oil coolers in street, performance, and racing applications.
