EVIL ENERGY 3/4/6/8/10/12/16/20AN Male Weld on Bung Fitting Aluminum/Stainless steel
About this item

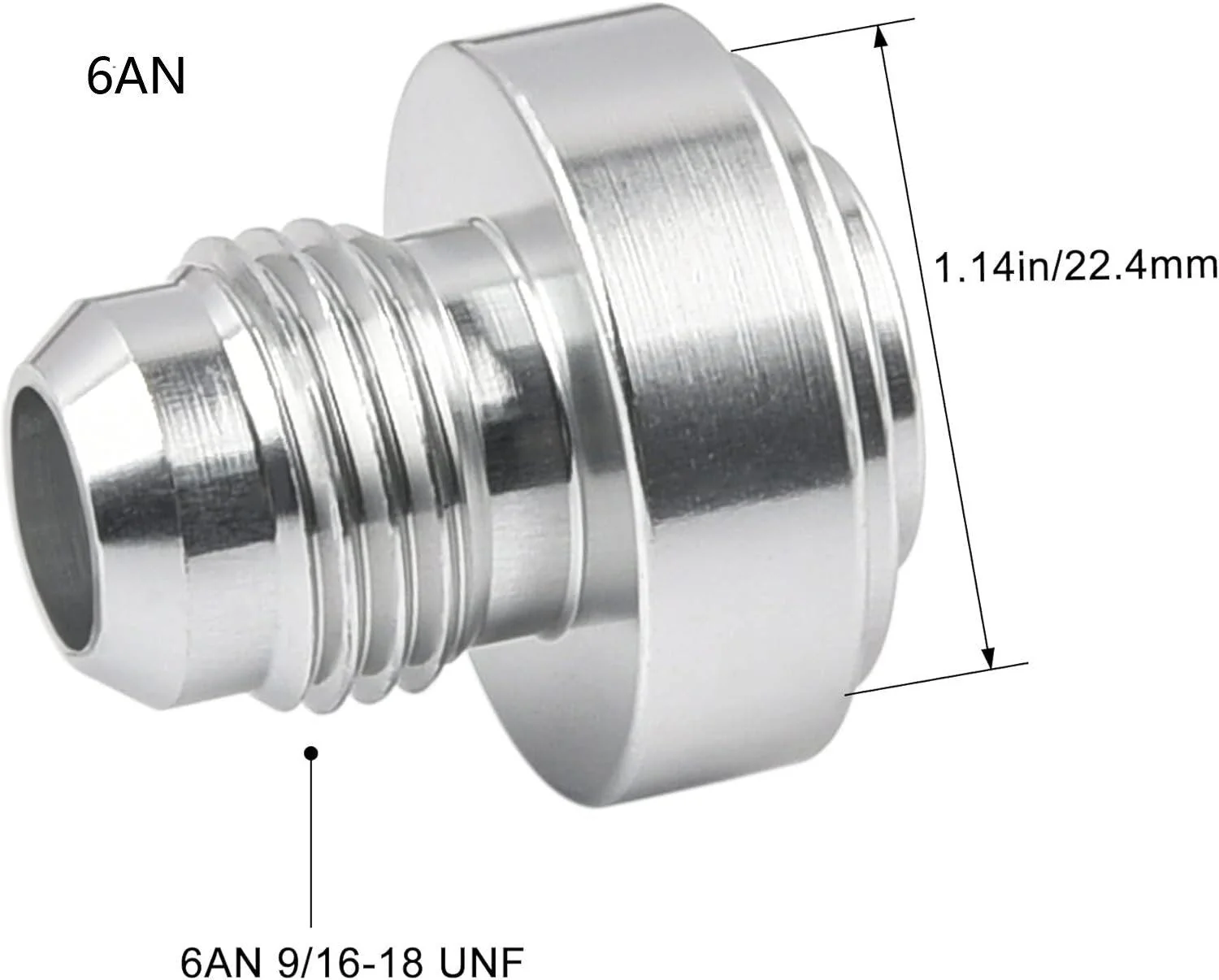

- Size: Thread size of 4an weld bung is 7/16-20 UNF,6an weld bung is 9/16-18 UNF，8an weld bung is 3/4-16 UNF,10an weld bung is 7/8-14 UNF,12an weld bung is 1 1/16-12 UNF.16an weld bung is 15/16-12 UNF.20an weld bung is 15/8-12 UNF.

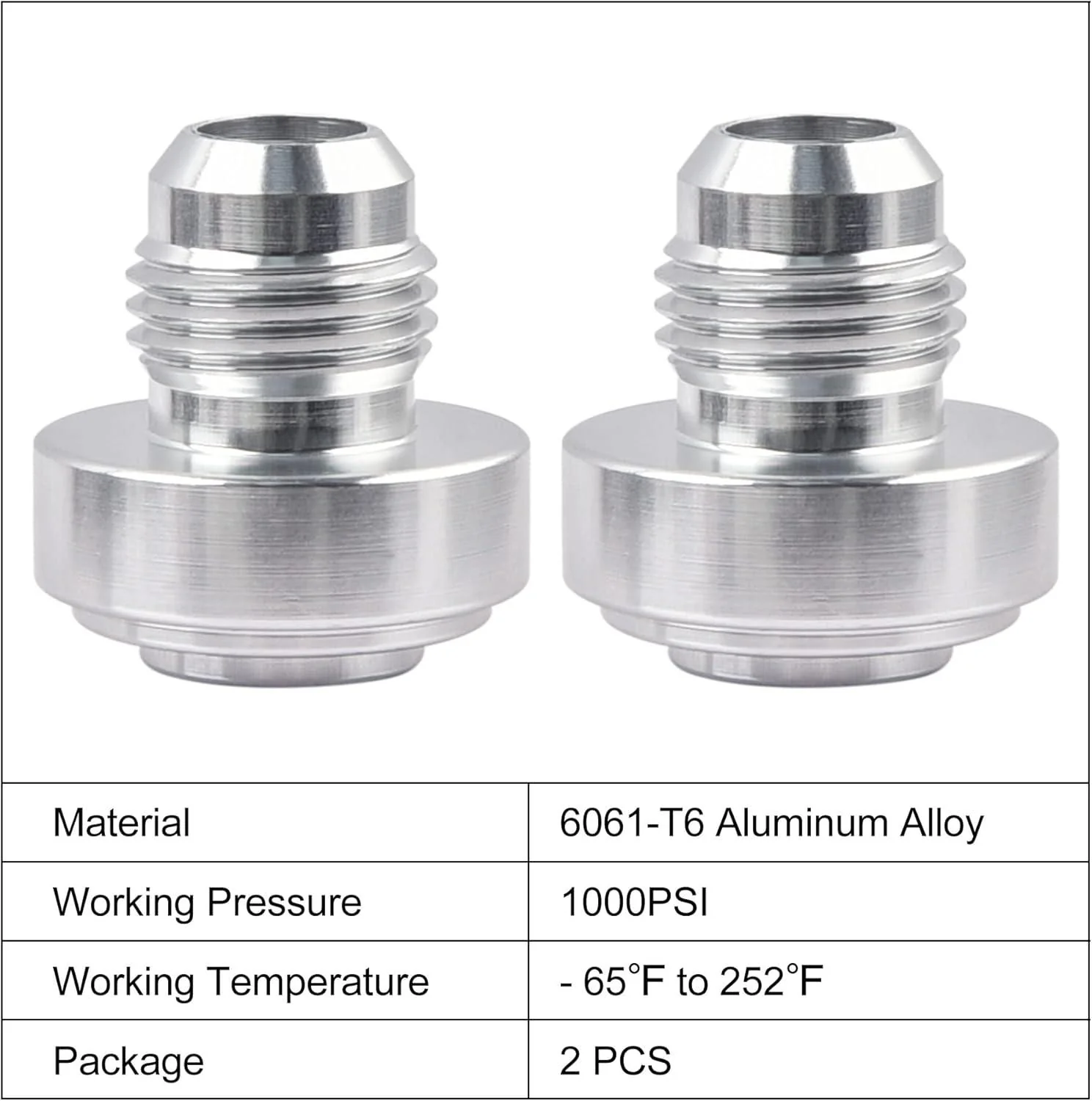

- Material: Made of aluminum alloy 6061-T6.
- Sealing: The AN thread of the flare is sealed by a 37 degree angle.
- Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: - 65℉ to 252℉.
- Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage
Product Description
About this item
- Size: Thread size of 4an weld bung is 7/16-20 UNF,6an weld bung is 9/16-18 UNF，8an weld bung is 3/4-16 UNF,10an weld bung is 7/8-14 UNF,12an weld bung is 1 1/16-12 UNF.16an weld bung is 15/16-12 UNF.20an weld bung is 15/8-12 UNF.
- Material: Made of aluminum alloy 6061-T6.
- Sealing: The AN thread of the flare is sealed by a 37 degree angle.
- Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: - 65℉ to 252℉.
- Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage
Product Description
Select Quantity
Select Material
Select Size
From $3.53
Original: $10.09
-65%EVIL ENERGY 3/4/6/8/10/12/16/20AN Male Weld on Bung Fitting Aluminum/Stainless steel—
$10.09
$3.53Description
About this item
- Size: Thread size of 4an weld bung is 7/16-20 UNF,6an weld bung is 9/16-18 UNF，8an weld bung is 3/4-16 UNF,10an weld bung is 7/8-14 UNF,12an weld bung is 1 1/16-12 UNF.16an weld bung is 15/16-12 UNF.20an weld bung is 15/8-12 UNF.
- Material: Made of aluminum alloy 6061-T6.
- Sealing: The AN thread of the flare is sealed by a 37 degree angle.
- Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: - 65℉ to 252℉.
- Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage
Product Description
