EVIL ENERGY E85 Compatible Fuel Filtration & Fuel Line Kit - Universal 6AN-10AN Inline Fuel Filter (10/30/40/100 Micron) + 20FT PTFE Braided Fuel Line (4AN-12AN, 3/16 Inch ID)
---!@!start!@!---Specifications---!@!end!@!---
10/30/40/100Micron Fuel Filter
| Brand | EVIL ENERGY |
| Product Grade | Replacement Part |
| Material | Filter Element: Stainless Steel, Fuel Filter Can: Aluminum |
| Style | Modern |
| Fuel Filter | 10 Micron 30 Micron 40 Micron 100 Micron |
| Material | Aluminum alloy fuel filter can and stainless steel filter element |
| OD | 10 Micron: 1.25 inch 30 Micron: 1.42 inch 40 Micron: 1.42 inch 100 Micron: 1.29 inch |
| ID | 10 Micron: 0.81 inch 30 Micron: 0.8 inch 40 Micron: 0.8 inch 100 Micron: 0.81 inch |
| Width | 10 Micron: 4.87 inch 30 Micron: 5.58 inch 40 Micron: 5.48 inch 100 Micron: 4.19 inch |
| Height | 10 Micron: 1.96 inch 30 Micron: 2.27 inch 40 Micron: 2.27 inch 100 Micron: 1.49 inch |
PTFE Fuel Line Details
 |
 |
 |
 |
|
SIZE |
4AN |
6AN |
8AN |
10AN |
|
Length |
10/20FT | 5/10/20/25FT | 5/10/20FT | 5/10/20FT |
|
Hose ID |
0.197"(5mm) |
0.315"(8mm) |
0.394"(10mm) |
0.511"(12.97mm) |
| Hose OD-Black |
0.346"(8.78mm) |
0.465"(11.81mm) |
0.543"(13.79mm) |
0.681"(17.29mm) |
|
Hose OD-Silver |
0.315"(8mm) |
0.433"(10.99mm) |
0.512"(13mm) |
0.641"(16.28mm) |
|
Min Bending Radius |
2.5"(63.5mm) |
3.5"(88.9mm) |
4.0"(101.6mm) |
4.5"(114.3mm) |
|
Max Working Pressure |
1500PSI |
1500PSI |
1500PSI |
1250PSI |
|
Bursting Pressure |
4500PSI |
4500PSI |
4500PSI |
3750PSI |
---!@!start!@!---Description---!@!end!@!---
EVIL ENERGY Multi-Micron Fuel Filter & PTFE Hose Kit Bundle
1. 10/30/40/100Micron Fuel Filter
- Compatibility & Adapters: Universal fit for gasoline, diesel, E85 fuel systems; includes AN6/AN8/AN10 adapters for different size applications.

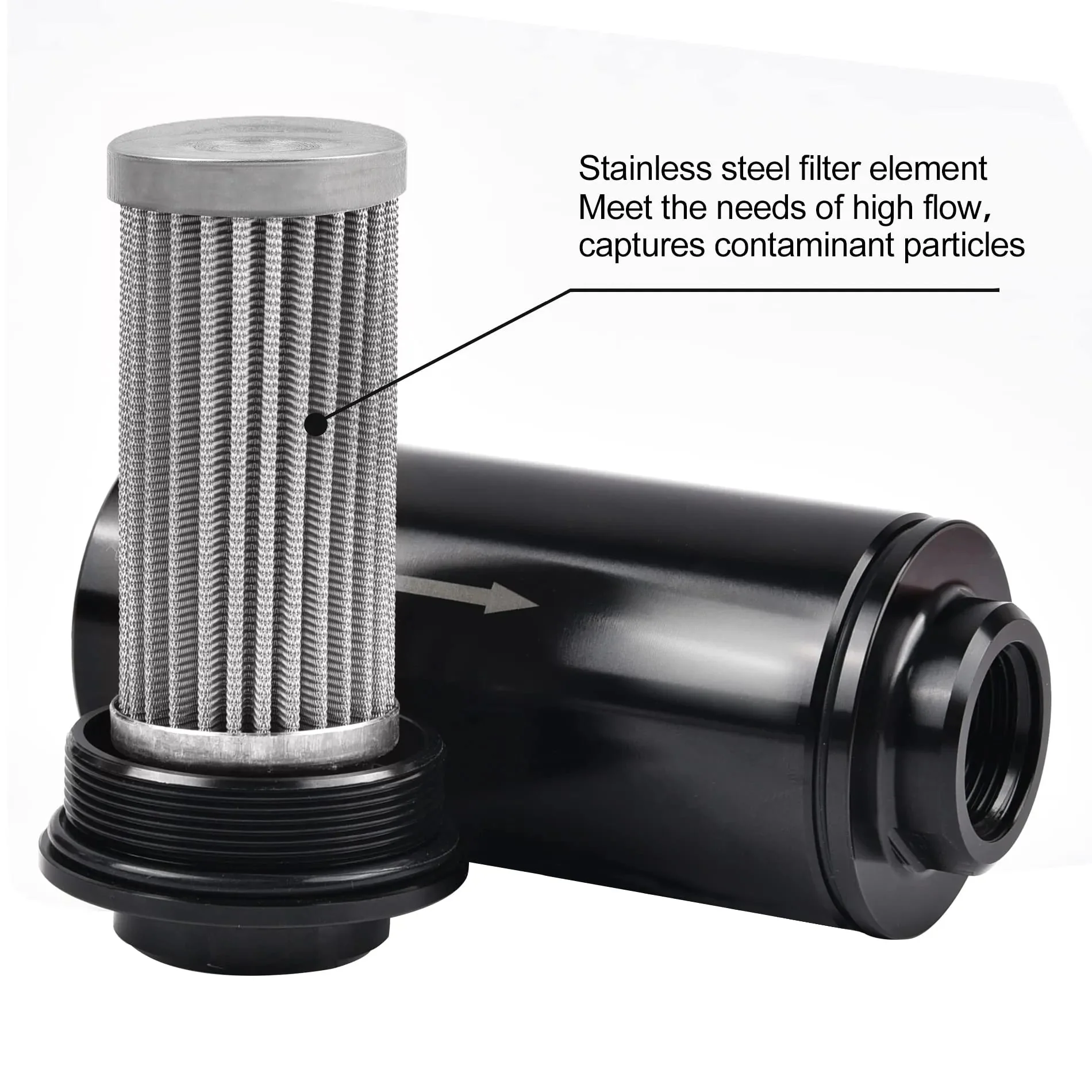

- Filtration & Protection: 4 micron options (10/30/40/100μm) — stainless steel elements capture particles ≥ corresponding size, safeguarding vehicle fuel systems.
- Durability & Design: Aluminum alloy can + leak-proof O-rings; removable structure for easy element cleaning/replacement.
- Installation Tips: Pre-debugged direction — dock filter element closed end with spring; fuel flows per arrow (spring end to opposite end) for longer service.
2. PTFE Fuel Line Kit
- [Applicable Medium] Our PTFE fuel hose kits is suit for all automotive fuels, lubricants, and coolants.
- [Working Temperature] PTFE Line Working temperature range: -76℉ to 446℉ (-60℃ to 230℃)
- [Suitable for Widely Usage] PTFE nylon braided fuel lines are ideal for high temperature and high pressure applications.
- [Notice] PTFE hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.
---!@!start!@!---Specifications---!@!end!@!---
10/30/40/100Micron Fuel Filter
| Brand | EVIL ENERGY |
| Product Grade | Replacement Part |
| Material | Filter Element: Stainless Steel, Fuel Filter Can: Aluminum |
| Style | Modern |
| Fuel Filter | 10 Micron 30 Micron 40 Micron 100 Micron |
| Material | Aluminum alloy fuel filter can and stainless steel filter element |
| OD | 10 Micron: 1.25 inch 30 Micron: 1.42 inch 40 Micron: 1.42 inch 100 Micron: 1.29 inch |
| ID | 10 Micron: 0.81 inch 30 Micron: 0.8 inch 40 Micron: 0.8 inch 100 Micron: 0.81 inch |
| Width | 10 Micron: 4.87 inch 30 Micron: 5.58 inch 40 Micron: 5.48 inch 100 Micron: 4.19 inch |
| Height | 10 Micron: 1.96 inch 30 Micron: 2.27 inch 40 Micron: 2.27 inch 100 Micron: 1.49 inch |
PTFE Fuel Line Details
|
|
|
|
|
SIZE |
4AN |
6AN |
8AN |
10AN |
|
Length |
10/20FT | 5/10/20/25FT | 5/10/20FT | 5/10/20FT |
|
Hose ID |
0.197"(5mm) |
0.315"(8mm) |
0.394"(10mm) |
0.511"(12.97mm) |
| Hose OD-Black |
0.346"(8.78mm) |
0.465"(11.81mm) |
0.543"(13.79mm) |
0.681"(17.29mm) |
|
Hose OD-Silver |
0.315"(8mm) |
0.433"(10.99mm) |
0.512"(13mm) |
0.641"(16.28mm) |
|
Min Bending Radius |
2.5"(63.5mm) |
3.5"(88.9mm) |
4.0"(101.6mm) |
4.5"(114.3mm) |
|
Max Working Pressure |
1500PSI |
1500PSI |
1500PSI |
1250PSI |
|
Bursting Pressure |
4500PSI |
4500PSI |
4500PSI |
3750PSI |
---!@!start!@!---Description---!@!end!@!---
EVIL ENERGY Multi-Micron Fuel Filter & PTFE Hose Kit Bundle
1. 10/30/40/100Micron Fuel Filter
- Compatibility & Adapters: Universal fit for gasoline, diesel, E85 fuel systems; includes AN6/AN8/AN10 adapters for different size applications.
- Filtration & Protection: 4 micron options (10/30/40/100μm) — stainless steel elements capture particles ≥ corresponding size, safeguarding vehicle fuel systems.
- Durability & Design: Aluminum alloy can + leak-proof O-rings; removable structure for easy element cleaning/replacement.
- Installation Tips: Pre-debugged direction — dock filter element closed end with spring; fuel flows per arrow (spring end to opposite end) for longer service.
2. PTFE Fuel Line Kit
- [Applicable Medium] Our PTFE fuel hose kits is suit for all automotive fuels, lubricants, and coolants.
- [Working Temperature] PTFE Line Working temperature range: -76℉ to 446℉ (-60℃ to 230℃)
- [Suitable for Widely Usage] PTFE nylon braided fuel lines are ideal for high temperature and high pressure applications.
- [Notice] PTFE hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.
