---!@!start!@!---Specifications---!@!end!@!---
| Available Sizes |
3AN, 4AN, 6AN, 8AN, 10AN, 12AN |
| Thread Size (UNF) |
3AN: 3/8-24 UNF
4AN: 7/16-20 UNF
6AN: 9/16-18 UNF
8AN: 3/4-16 UNF
10AN: 7/8-14 UNF
12AN: 1-1/16-12 UNF
|
| Available Angles |
Straight, 45°, 90°, 180° |
| Material |
6061-T6 Aluminum Alloy |
| Finish |
Black Anodized |
| Working Pressure |
1500 PSI |
| Temperature Range |
-65°F to 252°F (-54°C to 122°C) |
| Seal Type |
37° Flare Seal (AN Side) |
| Connector Type |

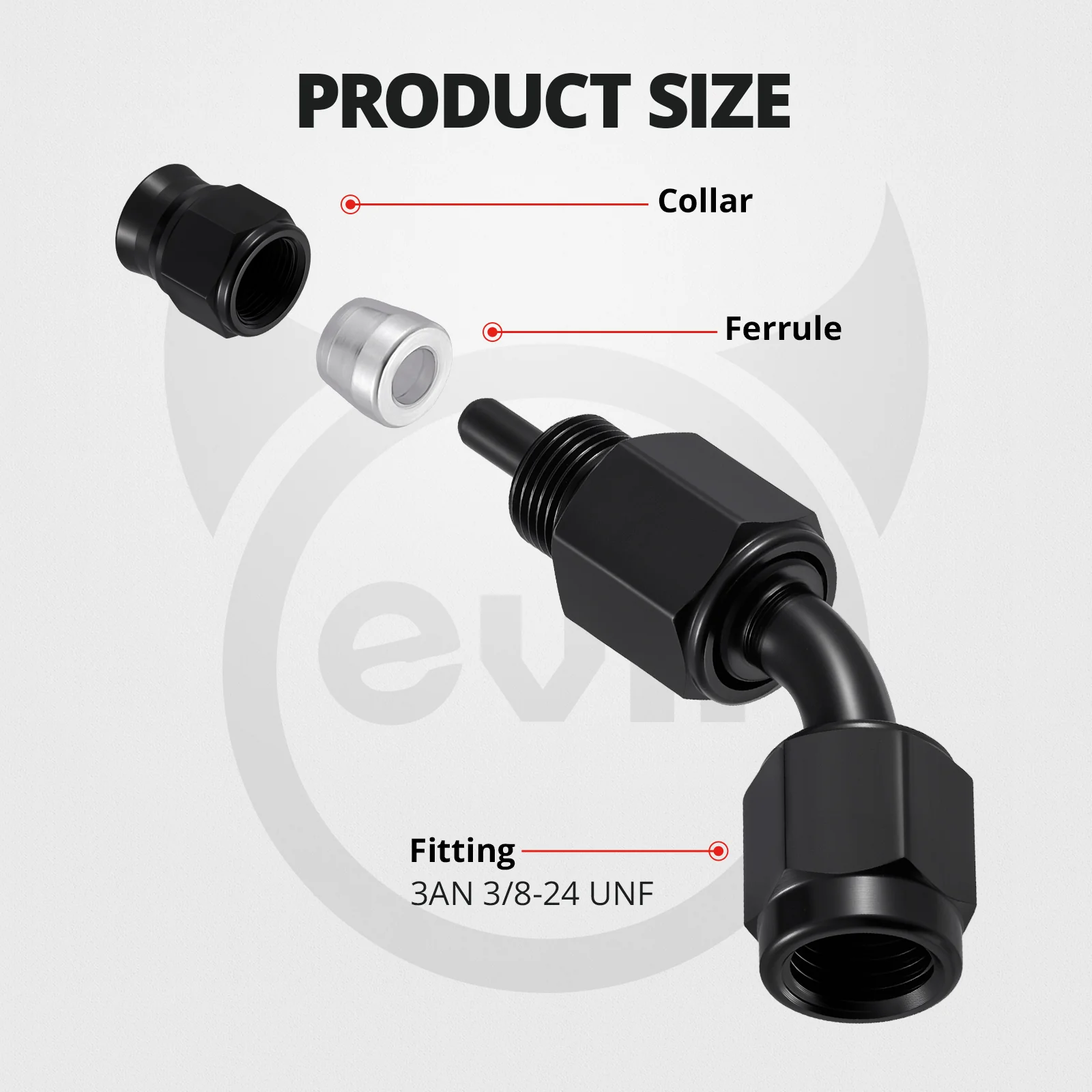

Nipple Style PTFE Hose End |
| Compatibility |
PTFE fuel line only (not for rubber hose) |
| Feature |
360° Swivel for easier assembly and orientation |
---!@!start!@!---Description---!@!end!@!---
EVIL ENERGY PTFE Hose End Fittings provide a secure, leak-free solution for high-pressure fuel systems, boosted engines, and ethanol-compatible builds. Designed exclusively for PTFE fuel lines, these fittings utilize a 37° flare seal and a 360° swivel body to simplify installation and ensure precise alignment. Built from 6061-T6 anodized aluminum, they withstand up to 1500 PSI and extreme temperatures, making them ideal for performance fuel systems, oil lines, transmission applications, and custom engine plumbing. Available in multiple angles to deliver flexible routing solutions for tight engine bays and custom layouts.
Confirm PTFE Hose Compatibility Before Purchase
This fitting is designed for the PTFE fuel line only. It is not for rubber hose, CPE braided hose, push-on hose, or standard braided rubber fuel hose. Before ordering, confirm that your hose type, AN size, thread size, and fitting angle match your fuel, oil, nitrous, or hydraulic line setup.
Which Angle Should You Choose
|
Fitting Angle
|
Best For
|
Purchase Note
|
|

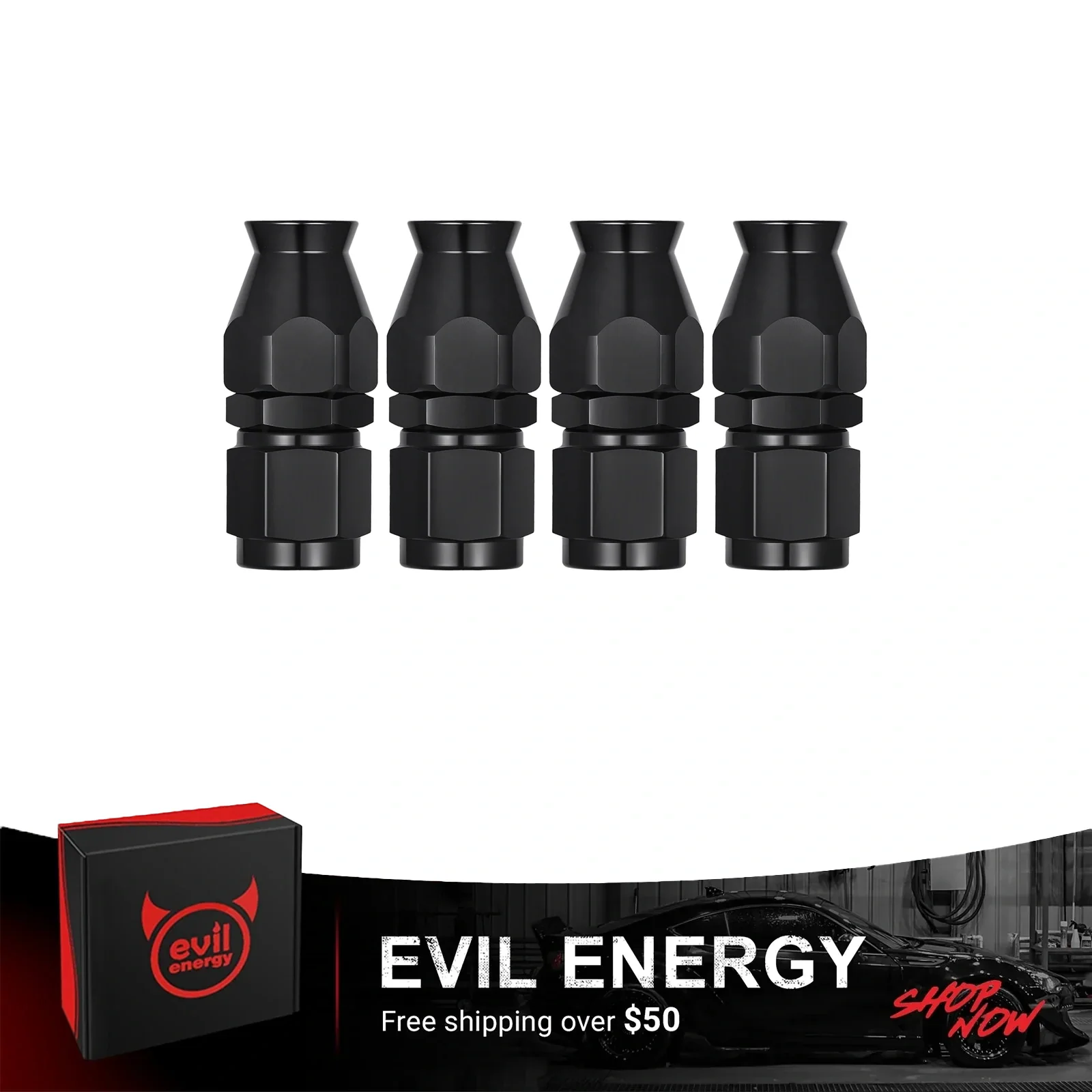

Straight
|
Direct line runs with enough clearance
|
Best when the hose can route cleanly without turning near the connection.
|
|

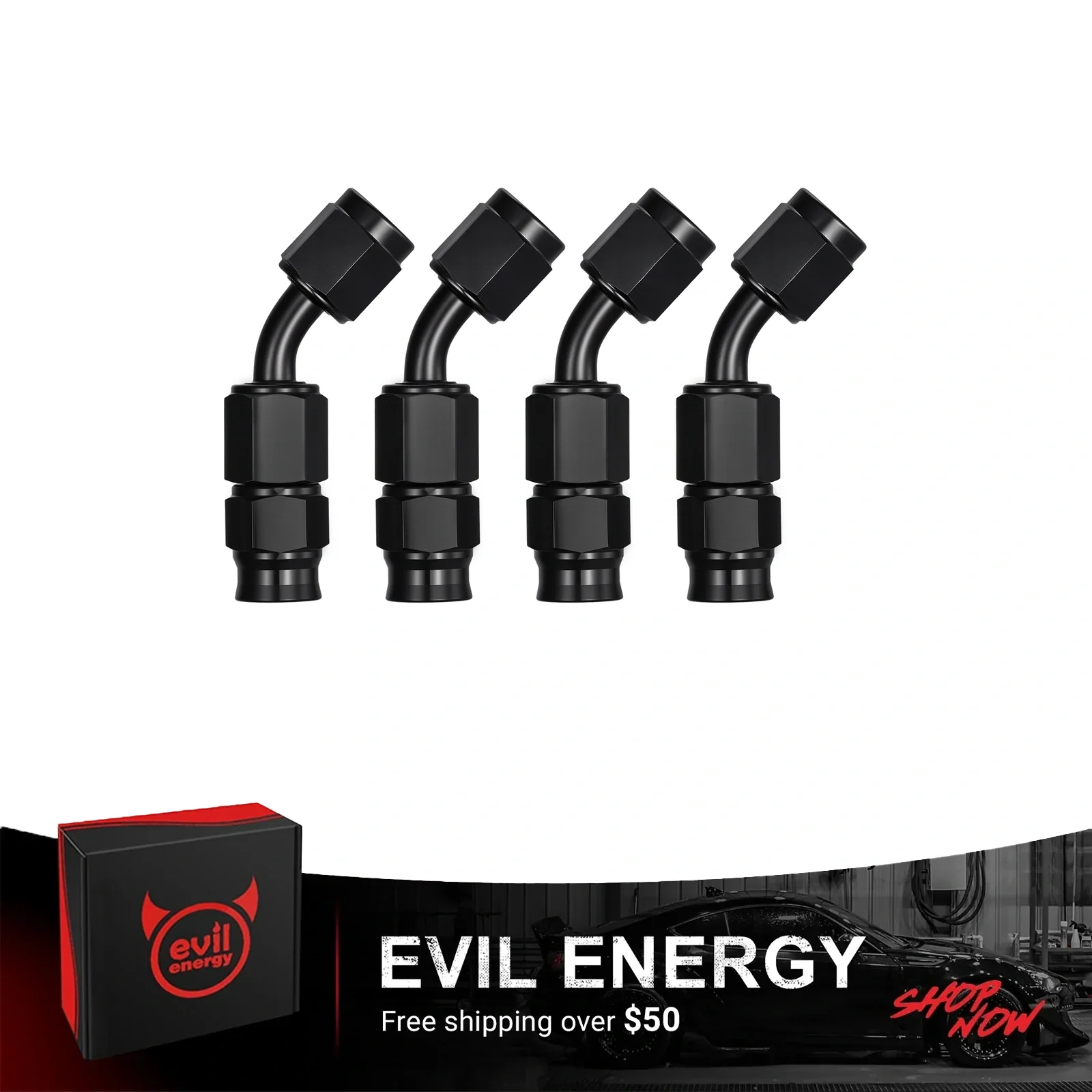

45 Degree
|
Slight direction changes in limited space
|
Useful when a straight fitting creates a mild bend or clearance issue.
|
|
90 Degree
|
Tight turns around fuel rails, filters, regulators, or brackets
|
Choose when the hose needs to leave the port at a sharp angle.
|
|
180 Degree
|
Returning the line in the opposite direction
|
Useful for compact layouts where the line needs to loop back cleanly.
|
