EVIL ENERGY 25FT Aluminum Coiled Fuel Line Kit with Fuel Filter Combo 10/100 Micron
---!@!start!@!---Specifications---!@!end!@!---
| Brand | EVIL ENERGY |
| Kit Type | Complete Fuel System Combo Kit |
| Vehicle | Universal — Most Car / Truck / SUV |
| Fuel Type | E85 / Gasoline / Diesel Compatible |
| Package Contents |
25FT Aluminum Tubing*1 Tube Cutter*1 Tube Bender*1 Deburring Tool*1 3/8-inch Tube Clamps*4 6AN Female to 3/8-inch Compression Fittings*6 10 Micron Fuel Filter*1 100 Micron Fuel Filter*1 6AN Fittings*4 8AN Fittings*4 10AN Fittings*4 |
| Fuel Line (25FT Aluminum Tubing) | |
| Material | 1060 Grade Aluminum (ASTM B210) |
| Tube Length | 25 FT (7.62 m) |
| Outer Diameter | 3/8-inch (9.5 mm) / 5/16-inch (8 mm) |
| Inner Diameter | 0.32-inch (8.1 mm) / 0.26-inch (6.6 mm) |
| Wall Thickness | 0.05-inch (1.4 mm) |
| Working Pressure | 700 PSI |
| Burst Pressure | 2000 PSI |
| Temperature Range | -58°F to 392°F (-50°C to 200°C) |
| Fuel Filter (Dual-Stage Inline Filter) | |
| Filter Element | Stainless Steel Mesh (Reusable) |
| Filter Housing | CNC Aluminum, Anodized |
| Micron Rating | 10 Micron (Fine) + 100 Micron (Coarse) |
| Compatible Fittings | 6AN / 8AN / 10AN |
| Bracket Size | 50mm Clamp |

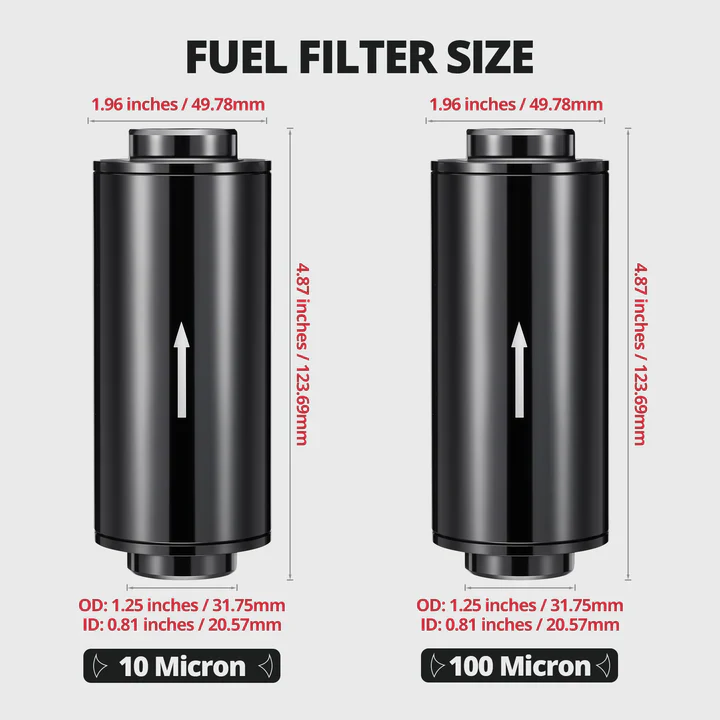

| Filter Size | ID:0.81-inch ;OD:1.25-inch;Width:.4.87-inch;Height:1.96-inch |
---!@!start!@!---Description---!@!end!@!---
Build a professional-grade fuel system with this Fuel Line Kit, featuring a 25FT 1060 aluminum line and a premium dual-stage Fuel Line Filter. This universal combo is engineered for E85, gasoline, and diesel, providing a 700 PSI working pressure capacity. The kit includes a 100 Micron Fuel Filter for pre-filtration and a 10 Micron Fuel Filter to safeguard precision injectors, making it the ultimate solution for LS swaps and EFI upgrades.
About This Combo Kit
This complete Fuel Line Kit combines our best-selling 25FT aluminum tubing with a premium Fuel Line Filter system — everything you need to build a reliable, high-performance fuel delivery path from pump to engine. Engineered for versatility, the kit features a dual-stage filtration setup, including a 100 Micron Fuel Filter for pre-pump protection and a 10 Micron Fuel Filter to safeguard sensitive injectors.
Whether you are performing a GM LS swap, upgrading an EFI system, or rebuilding a classic, this kit provides a leak-free solution with high-quality 6AN Fittings and 8AN Fittings included. It is the ultimate all-in-one Fuel Line Filter combo for enthusiasts seeking professional-grade durability and E85 compatibility.
What Is Included
25FT Aluminum inline Fuel Line — Premium 1060 Grade Aluminum
- Material: 1060 Grade Aluminum (ASTM B210 Compliant). This Fuel Line Kit is lightweight, corrosion-resistant, and thermally conductive—ideal for high-heat engine bays.
- Length: 25 feet (7.62m). Provides ample tubing for complete fuel system runs in most chassis and engine swaps.
- Pressure Rating: 700 PSI working / 2000 PSI burst. High-pressure capacity that easily handles performance EFI and turbo boost applications.
- Temperature Range: -58°F to 392°F (-50°C to 200°C). Extreme-condition ready, ensuring long-term durability in all climates.
- Size Options: Available in 3/8-inch (9.5mm) or 5/16-inch (8mm) outer diameter to match your specific Fuel Line Filter requirements.
- Installation Accessories: Each Fuel Line Kit includes professional-grade tools: a tube cutter, bender, and deburring tool.
- Fittings & Hardware: Includes 4× heavy-duty tube clamps and 6× 6AN Fittings (6AN Female to 3/8-inch compression adapters) to ensure a secure, leak-free connection.
Inline Fuel Filter — Dual-Stage 10/100 Micron
- Filter Element: High-flow stainless steel mesh. Features a 100 Micron Fuel Filter (coarse) to catch large debris before the pump and a 10 Micron Fuel Filter (fine) to protect sensitive fuel injectors from microscopic contaminants.
- Housing: CNC-machined billet aluminum with a premium anodized finish. This Fuel Line Filter housing is engineered to be exceptionally durable and corrosion-proof, even in E85 applications.
- Universal Compatibility: Designed to work seamlessly with 6AN Fittings, 8AN Fittings and 10AN adapters; Includes 60mm heavy-duty bracket clamps for secure chassis mounting.
- Reusable & Washable: Both the 10 and 100 Micron Fuel Filter elements are washable and reinstallable, significantly reducing long-term maintenance costs compared to disposable filters.
- Directional Flow: Features a high-visibility white arrow laser-etched on the Fuel Line Filter body to indicate the correct fuel flow direction for foolproof installation.
Key Features
- Dual-Stage Filtration: Includes a 100 Micron Fuel Filter pre-filter to remove large debris and a 10 Micron Fuel Filter fine element to protect precision injectors from damage.
- High-Pressure Rated: A 700 PSI working pressure rating ensures this Fuel Line Kit can easily handle high-boost EFI and performance racing applications.
- Complete All-in-One Kit: Comes fully loaded with 6AN Fittings, 8AN Fittings, adapters, and clamps—providing everything required for a professional Fuel Line Filter installation without extra trips to the parts store.
- Lightweight Aluminum Tubing: The 1060-grade aluminum Fuel Line Kit weighs significantly less than stainless steel, offering superior corrosion resistance and efficient heat dissipation.
- Easy DIY Installation: We include a professional-grade tube cutter, bender, and deburring tool, allowing you to create custom, shop-quality bends for your specific chassis.
- Reusable Fuel Line Filter: Features a washable stainless steel element; simply clean and reinstall to save on long-term maintenance costs.
- LS Swap Ready: The perfect Fuel Line Kit solution for GM LS Swap projects, offering seamless compatibility with LS1, LS2, LS3, and LQ4 engine platforms.
Why Build a Complete Fuel System?
A reliable fuel system requires more than just a powerful pump. The Fuel Line Kit serves as the critical artery of your vehicle, carrying fuel from the tank to the Fuel Line Filter without pressure loss. Our dual-stage system is essential because the 100 Micron Fuel Filter pre-screens large debris to protect your pump, while the 10 Micron Fuel Filter acts as a final fail-safe to prevent injector clogging, which often leads to engine hesitation, misfires, or costly repairs.
By choosing our complete Fuel Line Kit, you ensure a continuous, leak-free run that integrates high-quality 6AN Fittings and 8AN Fittings for maximum flow. This setup provides two professional stages of filtration before fuel reaches your engine, ensuring peak performance and long-term fuel system health.
Applications
- GM LS Swap: The ultimate Fuel Line Kit for 1997–2025 GM LS V8 engine conversions (LS1, LS2, LS3, LS6, LS7, LQ4, LQ9, etc.). It provides a seamless connection to LS fuel rails using the included 6AN Fittings.
- Ford V8 Swap: Fully compatible with Ford Modular, Coyote, and EcoBoost V8 swaps. This Fuel Line Filter system handles the high-pressure demands of modern Ford EFI platforms with ease.
- Chrysler Hemi Swap: Engineered for 5.7, 6.1, 6.2, and 6.4 Hemi V8 swaps. The kit's 8AN Fittings and high-flow tubing support the fuel volume required for Gen III Hemi performance.
- Carbureted Classics: A perfect Fuel Line Filter upgrade for vintage muscle cars. Replaces restrictive factory steel lines with a high-flow aluminum Fuel Line Kit for improved reliability.
- E85 Fuel Systems: Specifically designed for ethanol compatibility. Both the 1060 aluminum tubing and the 100 Micron Fuel Filter / 10 Micron Fuel Filter elements are 100% E85, gasoline, and diesel compatible.
- Diesel Fuel Systems: Robust enough for diesel lift pumps and fuel polishing systems, ensuring the Fuel Line Filter removes contaminants before they reach expensive injection pumps.
