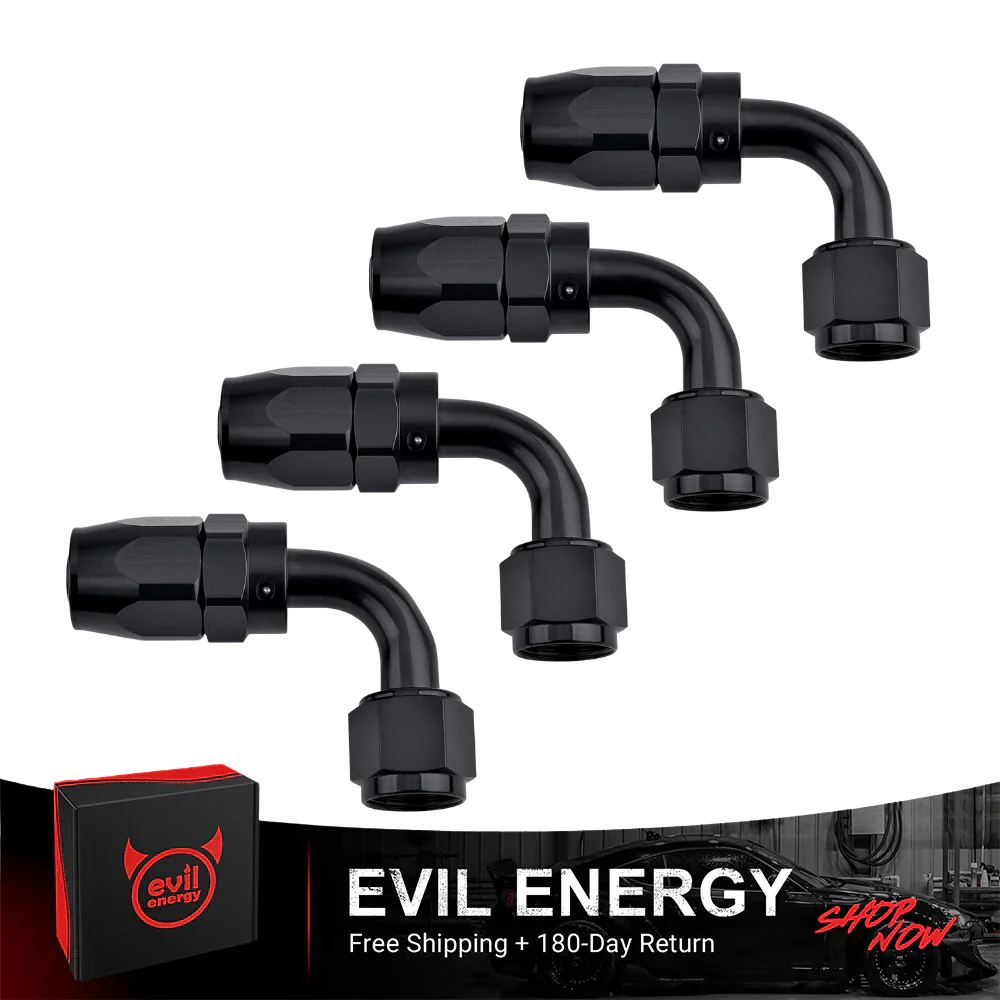

EVIL ENERGY AN Hose End Fitting 90 Degree Swivel Aluminum Black (4/6/8/10/12/16/20AN)
---!@!start!@!---Specifications---!@!end!@!---

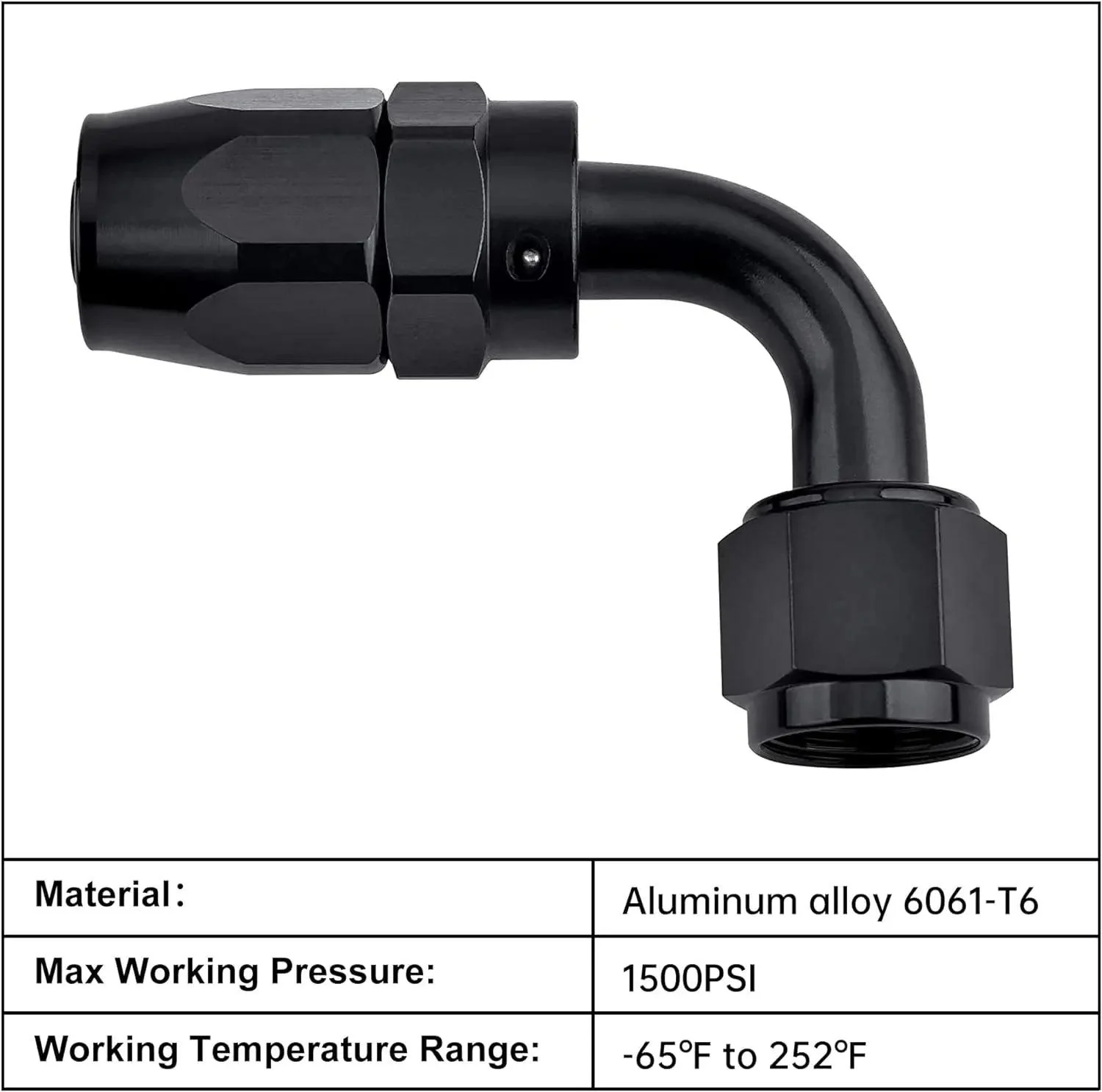

| Material | 6061-T6 Aluminum |
| Finish | Black Anodized |
| Fitting Angle | 90° |
| Swivel | 360° Full Rotation |
| Seal Type | 37° Flare (AN Standard) |
| Thread Type | UNF |
| Thread Sizes | 4AN – 7/16-20 UNF 6AN – 9/16-18 UNF 8AN – 3/4-16 UNF 10AN – 7/8-14 UNF 12AN – 1 1/16-12 UNF 16AN – 1 5/16-12 UNF 20AN – 1 5/8-12 UNF |
| Working Pressure | Up to 1500 PSI |
| Temperature Range | -40℉ to 248℉ (-40℃ to 120℃) |

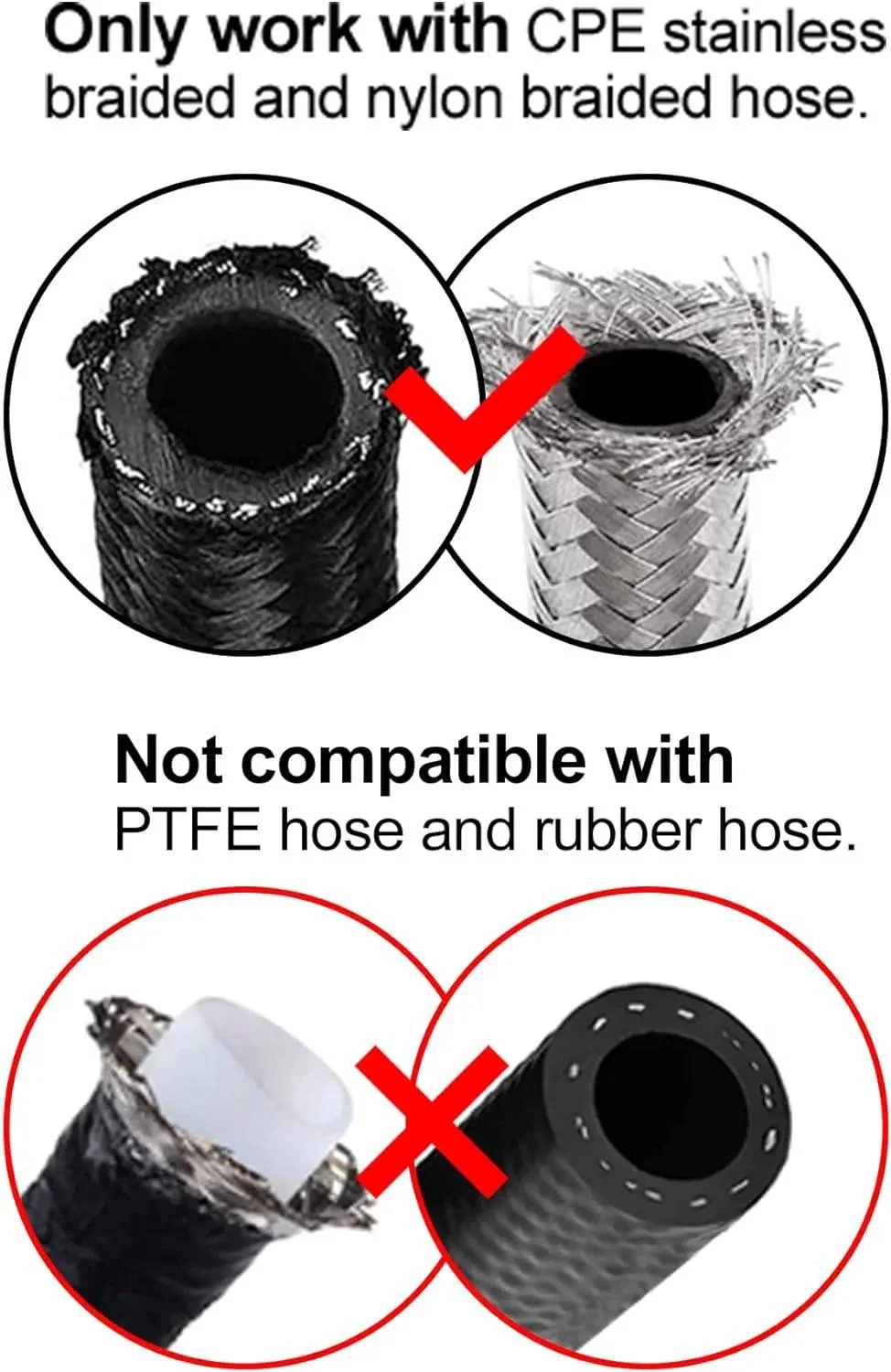

| Compatibility | Stainless & Nylon Braided Hose |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY 90° AN Hose End Fitting is engineered for precision routing where space is tight and reliability matters. Featuring a CNC-machined 6061-T6 aluminum body and corrosion-resistant black anodized finish, it ensures secure connections in fuel, oil, or transmission systems. With a full swivel design, it's easy to align and install without twisting your line. Designed for high-pressure performance (up to 1500 PSI), it’s perfect for EFI, LS swaps, and racing applications. Available from 4AN to 20AN.
---!@!start!@!---Specifications---!@!end!@!---
| Material | 6061-T6 Aluminum |
| Finish | Black Anodized |
| Fitting Angle | 90° |
| Swivel | 360° Full Rotation |
| Seal Type | 37° Flare (AN Standard) |
| Thread Type | UNF |
| Thread Sizes | 4AN – 7/16-20 UNF 6AN – 9/16-18 UNF 8AN – 3/4-16 UNF 10AN – 7/8-14 UNF 12AN – 1 1/16-12 UNF 16AN – 1 5/16-12 UNF 20AN – 1 5/8-12 UNF |
| Working Pressure | Up to 1500 PSI |
| Temperature Range | -40℉ to 248℉ (-40℃ to 120℃) |
| Compatibility | Stainless & Nylon Braided Hose |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY 90° AN Hose End Fitting is engineered for precision routing where space is tight and reliability matters. Featuring a CNC-machined 6061-T6 aluminum body and corrosion-resistant black anodized finish, it ensures secure connections in fuel, oil, or transmission systems. With a full swivel design, it's easy to align and install without twisting your line. Designed for high-pressure performance (up to 1500 PSI), it’s perfect for EFI, LS swaps, and racing applications. Available from 4AN to 20AN.
Original: $11.09
-65%$11.09
$3.88Description
---!@!start!@!---Specifications---!@!end!@!---
| Material | 6061-T6 Aluminum |
| Finish | Black Anodized |
| Fitting Angle | 90° |
| Swivel | 360° Full Rotation |
| Seal Type | 37° Flare (AN Standard) |
| Thread Type | UNF |
| Thread Sizes | 4AN – 7/16-20 UNF 6AN – 9/16-18 UNF 8AN – 3/4-16 UNF 10AN – 7/8-14 UNF 12AN – 1 1/16-12 UNF 16AN – 1 5/16-12 UNF 20AN – 1 5/8-12 UNF |
| Working Pressure | Up to 1500 PSI |
| Temperature Range | -40℉ to 248℉ (-40℃ to 120℃) |
| Compatibility | Stainless & Nylon Braided Hose |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY 90° AN Hose End Fitting is engineered for precision routing where space is tight and reliability matters. Featuring a CNC-machined 6061-T6 aluminum body and corrosion-resistant black anodized finish, it ensures secure connections in fuel, oil, or transmission systems. With a full swivel design, it's easy to align and install without twisting your line. Designed for high-pressure performance (up to 1500 PSI), it’s perfect for EFI, LS swaps, and racing applications. Available from 4AN to 20AN.
