EVIL ENERGY 6/8/10AN PTFE Fuel Line Kit – 20FT Nylon Braided E85-Compatible High-Pressure Fuel Hose Kit
---!@!start!@!---Specifications---!@!end!@!---
| Specification | Details |
|---|---|

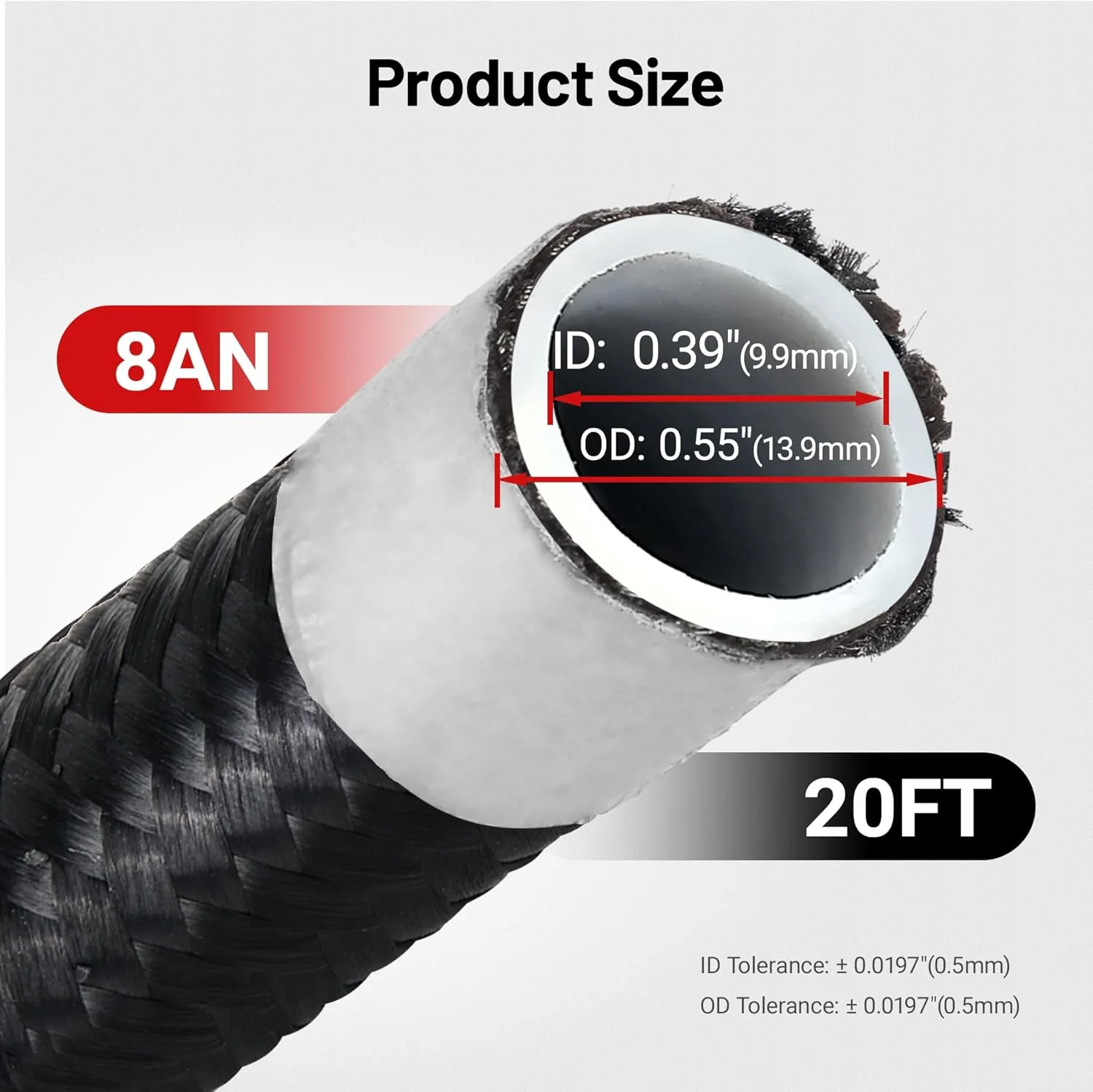

| Inner Diameter (ID) | 6AN: 0.31 inch 8AN: 0.39 inch 10AN: 0.52 inch |
| Outer Diameter (OD) | 6AN: 0.45 inch 8AN: 0.55 inch 10AN: 0.69 inch |
| Length | 20 feet |
| Minimum Bend Radius | 6AN: 3.5" 8AN: 4" 10AN: 4.5" |
| Working Temperature | -76℉ to 446℉ (-60℃ to 230℃) |
| Maximum Working Pressure | 1,250 PSI |
| Bursting Pressure | 3,750 PSI |

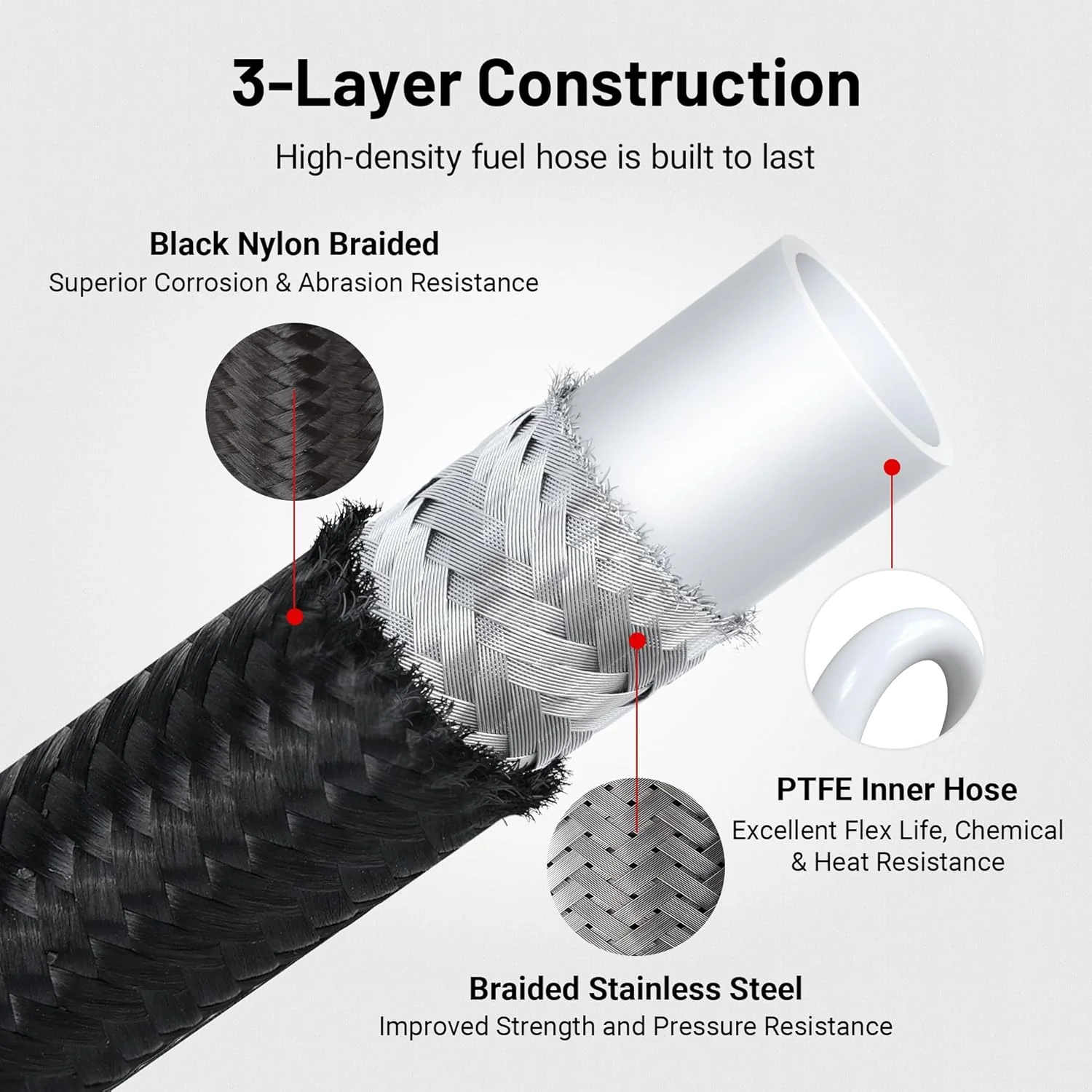

| Material | PTFE Inner Core + Nylon Braided Outer Layer |
| Compatible Medium | E85, gasoline, diesel, lubricants, oil, coolant |

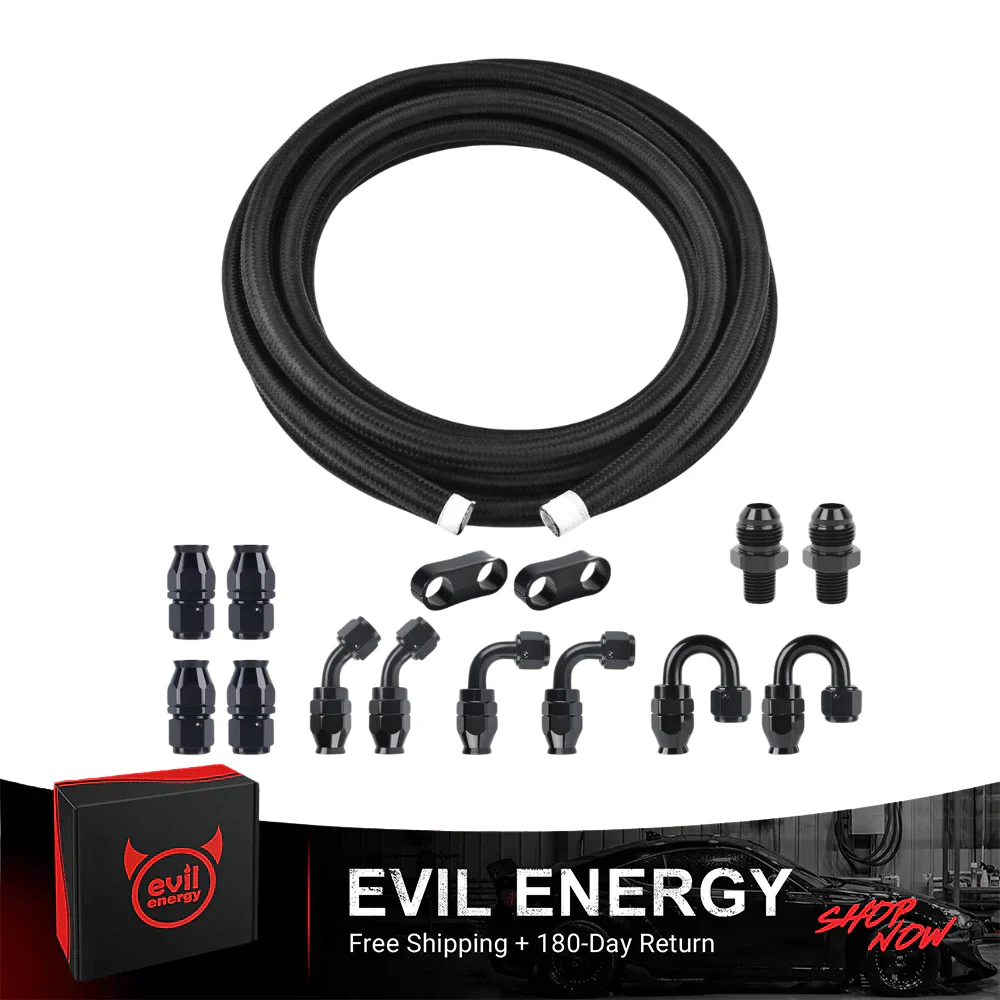

| Package Includes | Complete PTFE Fuel Line Kit (as shown) |
---!@!start!@!---Description---!@!end!@!---
High-Performance PTFE Fuel Line for Modern Builds
This EVIL ENERGY PTFE fuel line kit is engineered for enthusiasts who need a fuel system that performs under extreme heat, pressure, and demanding fuel types like E85. The PTFE inner core prevents fuel vapor permeation, while the durable nylon braid protects against abrasion, heat, and long-term wear.
Why Upgrade to PTFE?
Traditional rubber fuel hoses break down with ethanol, crack under high heat, and are prone to vapor smell. PTFE solves these issues with:
-
Zero fuel odor permeation
-
Superior heat resistance up to 446°F
-
Longer lifespan with modern ethanol-blended fuels
-
Higher pressure tolerance for boosted applications
Ideal for turbo builds, high-flow pumps, return-style fuel systems, LS swaps, drag racing setups, and high-temperature engine bays.
Built to Withstand Extreme Conditions
With a 1,250 PSI working pressure and 3,750 PSI burst rating, this hose supports high-pressure EFI systems and heavy-duty performance upgrades. Whether you're pushing a high-boost turbo or tuning a street car, the EVIL ENERGY PTFE line maintains stable flow and leak-free performance.
Wide Compatibility
Suitable for:
-
E85, gasoline, diesel
-
Transmission & power steering fluid
-
Engine oil & coolant
-
High-pressure & high-temp automotive systems
Installation Notes
This PTFE fuel line is rigid by design and cannot be sharply folded. Proper tools and professional installation are recommended to achieve a secure, leak-free fit.
