EVIL ENERGY 3/16 Fuel Hose Line Push Lock NBR Rubber SAE 30R7 5/10/25FT 300PSI
---!@!start!@!---Specifications---!@!end!@!---
| Brand | EVIL ENERGY |
| Hose Type | Push-On Fuel Hose |
| SAE Standard | SAE J30R7 |
| Material | NBR Rubber |
| Color | Black |
| Available Lengths | 5 ft / 10 ft / 25 ft |
| Hose Inside Diameter | 3/16 in (5 mm) |
| Hose Outside Diameter | 0.43 in (11 mm) |
| Approx. Wall Thickness | 0.12 in (3 mm) |
| Maximum Working Pressure | 300 PSI |
| Minimum Burst Pressure | 1,200 PSI |
| Operating Temperature Range | -40°F to 257°F (-40°C to 125°C) |
| Minimum Bend Radius | 1.96 in (50 mm) |
| Recommended Applications | Fuel, oil, vapor, vent and return-line applications |
| Installation Notes | Verify fluid compatibility, system pressure and fitting size before installation. Use suitable clamps or push-on fittings as required. |
| Use Restrictions | Not designed for in-tank or fully submerged fuel applications. Do not use with gaseous fuels. |
| Package Dimensions L × W × H | 5 ft: 7.68 × 7.68 × 3.15 in 10 ft: 8.07 × 8.07 × 3.94 in 25 ft: 13.39 × 13.39 × 4.33 in |
---!@!start!@!---Product Description---!@!end!@!---

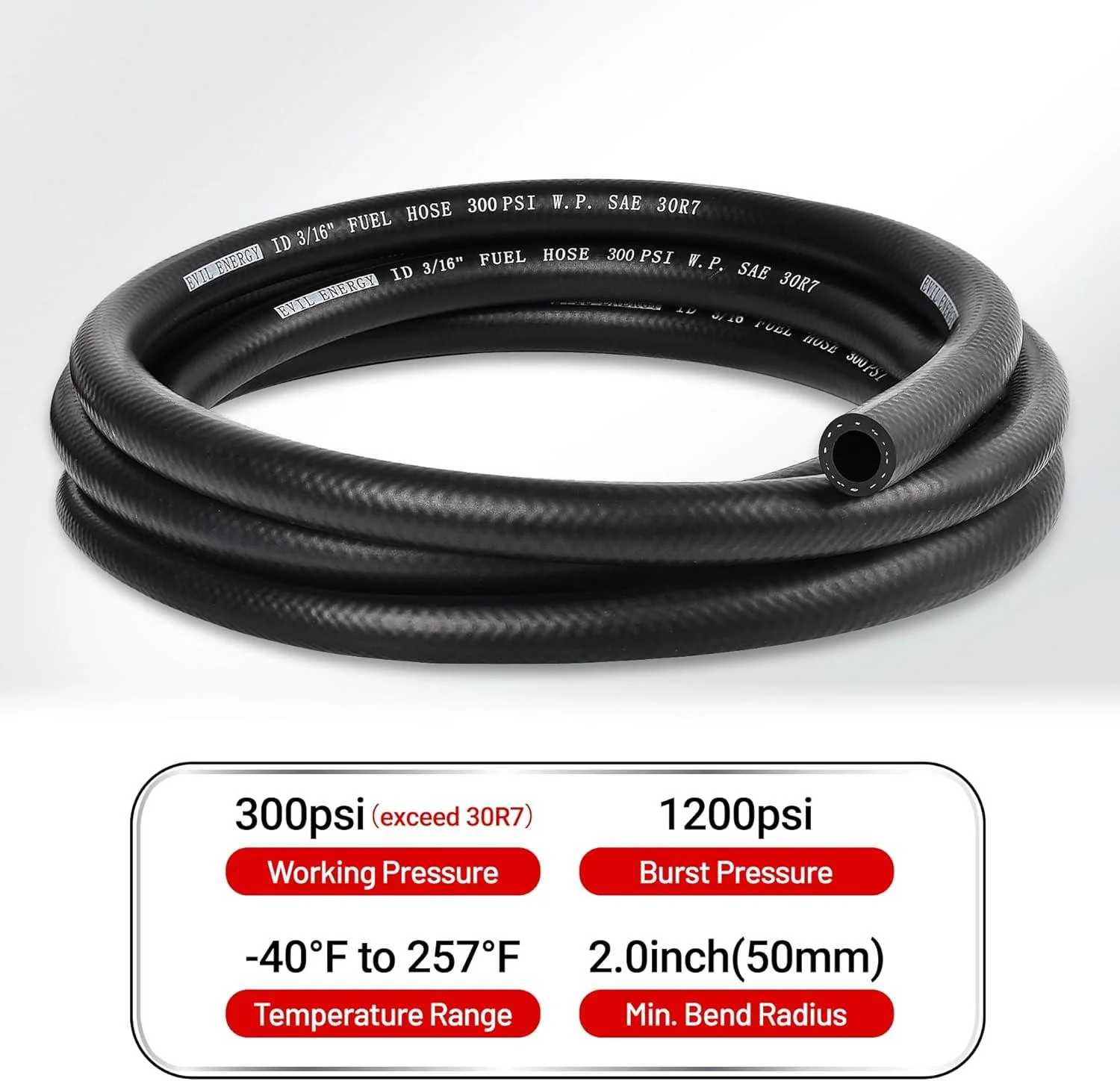

What Is This 3/16 Inch SAE 30R7 Fuel Hose Used For?
- 3/16" (5mm) SAE 30R7 fuel hose built for small-engine fuel delivery, carburetor vent, PCV and low-flow vacuum routing. Rated 300 PSI working / 1200 PSI burst, tolerant to gasoline, diesel, biodiesel, ethanol blends, oil and air.
- Push-lock compatible with 3/16" barb and hose-end fittings — no crimping required
- Temperature range -40°F to 257°F for under-hood and outdoor equipment use
- Tight 1.96" minimum bend radius for cramped routing on motorcycles, ATVs and lawn equipment
- Available in 5FT / 10FT / 25FT: backed by a 3-month warranty
How Does NBR Fuel Hose Improve Durability?
Built with an NBR rubber inner layer and reinforced braided fibers, this fuel hose provides reliable pressure handling while maintaining flexibility for tight routing. The reinforced construction helps resist expansion, abrasion and long-term wear in automotive and outdoor applications.
Polyester Braided Fuel Hose vs Nylon Reinforced Hose
The polyester fiber reinforcement provides improved heat resistance and aging performance compared with standard nylon reinforcement. This design helps maintain hose strength and stability during continuous fuel system operation.
How To Install A Push Lock Fuel Hose Without Crimping
