EVIL ENERGY 4/6/8/10/12/16AN 45° Forged Swivel Hose End Fitting – Low Profile Aluminum for CPE Braided Fuel Line
---!@!start!@!---Specifications---!@!end!@!---

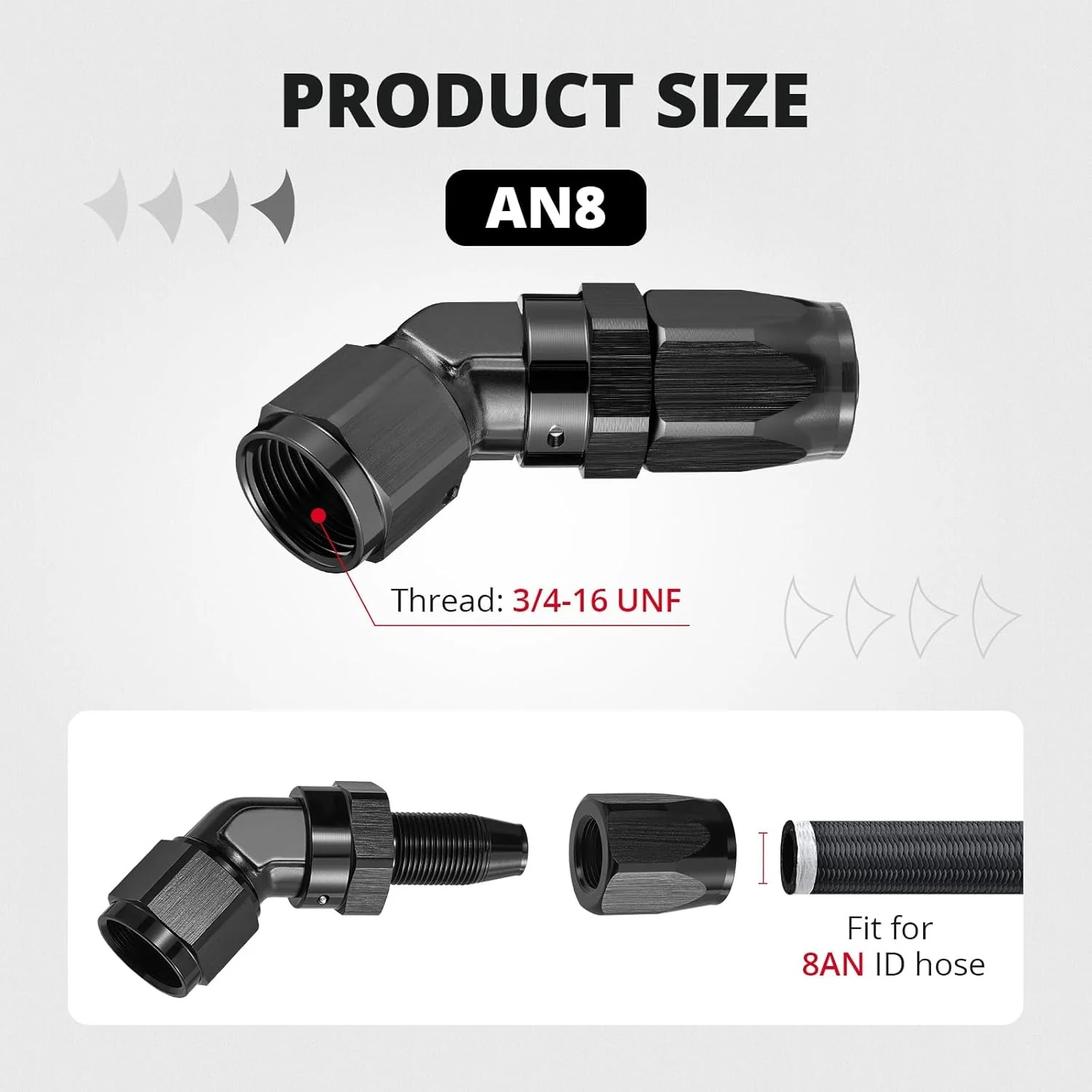

| Available Sizes | 6AN, 8AN |
| Thread Size | 6AN: 9/16-18 UNF (37° flare seal) 8AN: 3/4-16 UNF (37° flare seal) |
| Angle | 45° Low Profile |
| Material | Forged 6061-T6 Aluminum |
| Finish | Black Anodized |
| Working Pressure | 1500 PSI Max |
| Temperature Range | -40℉ to 250℉ (-40℃ to 121℃) |
| Compatibility | Stainless steel braided hose / nylon braided hose (CPE inner) |
| Connector Type | AN Flare Hose End, 360° Swivel |
| Feature | Compact forged bend for tight-space routing |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY 45° Low Profile AN Hose End Fitting is engineered for performance fuel systems that demand strength, precision, and space-efficient routing. Its forged 6061-T6 aluminum body delivers superior durability compared to standard welded fittings, while the compact low-profile angle provides easier installation in tight engine compartments. A 37° flare sealing surface and 360° swivel design ensure quick assembly and a secure, leak-free connection—ideal for high-pressure applications up to 1500 PSI. Compatible with both stainless-braided and nylon-braided CPE fuel lines, this fitting is built for fuel, oil, and transmission fluid systems in performance builds, LS swaps, turbo setups, and track-ready vehicles.
---!@!start!@!---Specifications---!@!end!@!---
| Available Sizes | 6AN, 8AN |
| Thread Size | 6AN: 9/16-18 UNF (37° flare seal) 8AN: 3/4-16 UNF (37° flare seal) |
| Angle | 45° Low Profile |
| Material | Forged 6061-T6 Aluminum |
| Finish | Black Anodized |
| Working Pressure | 1500 PSI Max |
| Temperature Range | -40℉ to 250℉ (-40℃ to 121℃) |
| Compatibility | Stainless steel braided hose / nylon braided hose (CPE inner) |
| Connector Type | AN Flare Hose End, 360° Swivel |
| Feature | Compact forged bend for tight-space routing |
---!@!start!@!---Description---!@!end!@!---
The EVIL ENERGY 45° Low Profile AN Hose End Fitting is engineered for performance fuel systems that demand strength, precision, and space-efficient routing. Its forged 6061-T6 aluminum body delivers superior durability compared to standard welded fittings, while the compact low-profile angle provides easier installation in tight engine compartments. A 37° flare sealing surface and 360° swivel design ensure quick assembly and a secure, leak-free connection—ideal for high-pressure applications up to 1500 PSI. Compatible with both stainless-braided and nylon-braided CPE fuel lines, this fitting is built for fuel, oil, and transmission fluid systems in performance builds, LS swaps, turbo setups, and track-ready vehicles.
Original: $15.99
-65%$15.99
$5.60Description
